Diagnostic Work Flow

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

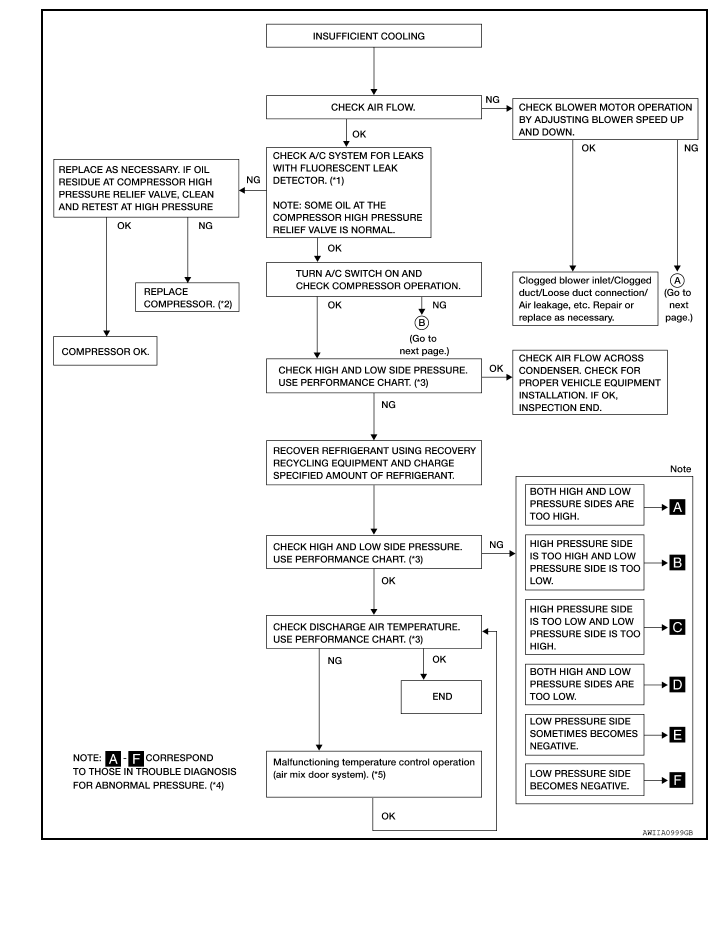

Fig 1: Insufficient Cooling Diagnostic Work Flow Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Insufficient Cooling Diagnostic Work Flow Chart (1 Of 2) Footnotes

Refer to CHECKING SYSTEM FOR LEAKS USING THE FLUORESCENT DYE LEAK DETECTOR
Refer to REMOVAL AND INSTALLATION
Refer to Performance Chart
Refer to Trouble Diagnoses for Abnormal Pressure
Refer to Air Mix Door Motor (Driver) Component Function Check

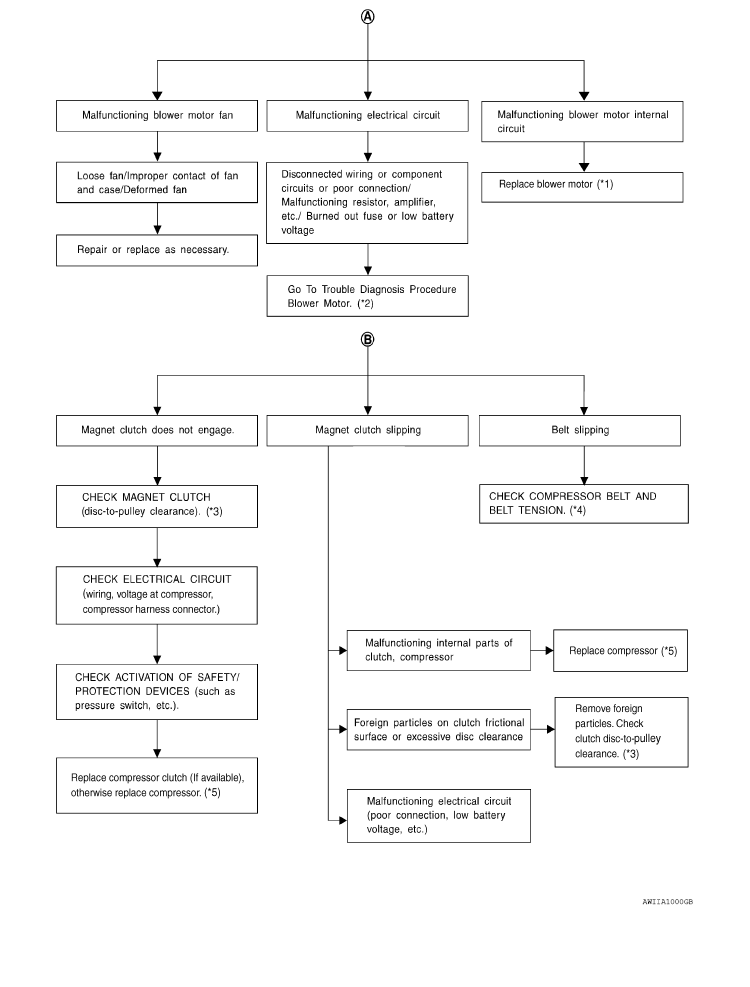

Fig 2: Insufficient Cooling Diagnostic Work Flow Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Insufficient Cooling Diagnostic Work Flow Chart (2 Of 2) Footnotes

Refer to REMOVAL AND INSTALLATION
Refer to Front Blower Motor Component Function Check
Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH
Refer to CHECKING DRIVE BELTS
Refer to REMOVAL AND INSTALLATION
