Parking, License Plate And Tail Lamps System: Wiring Diagram

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

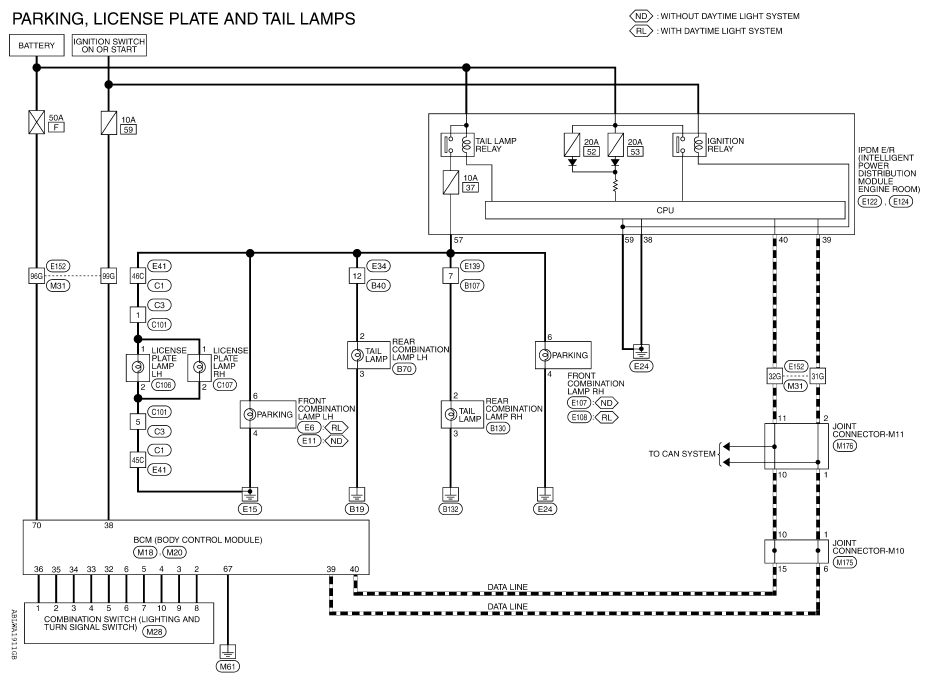

Fig 1: Parking, License Plate And Tail Lamps - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

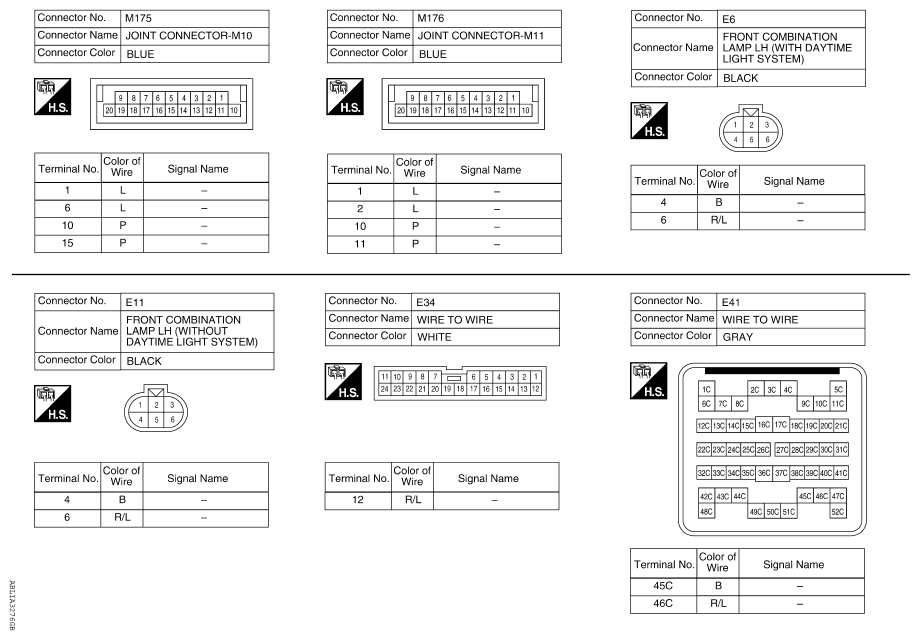

Fig 2: Parking, License Plate And Tail Lamps Connector End View (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

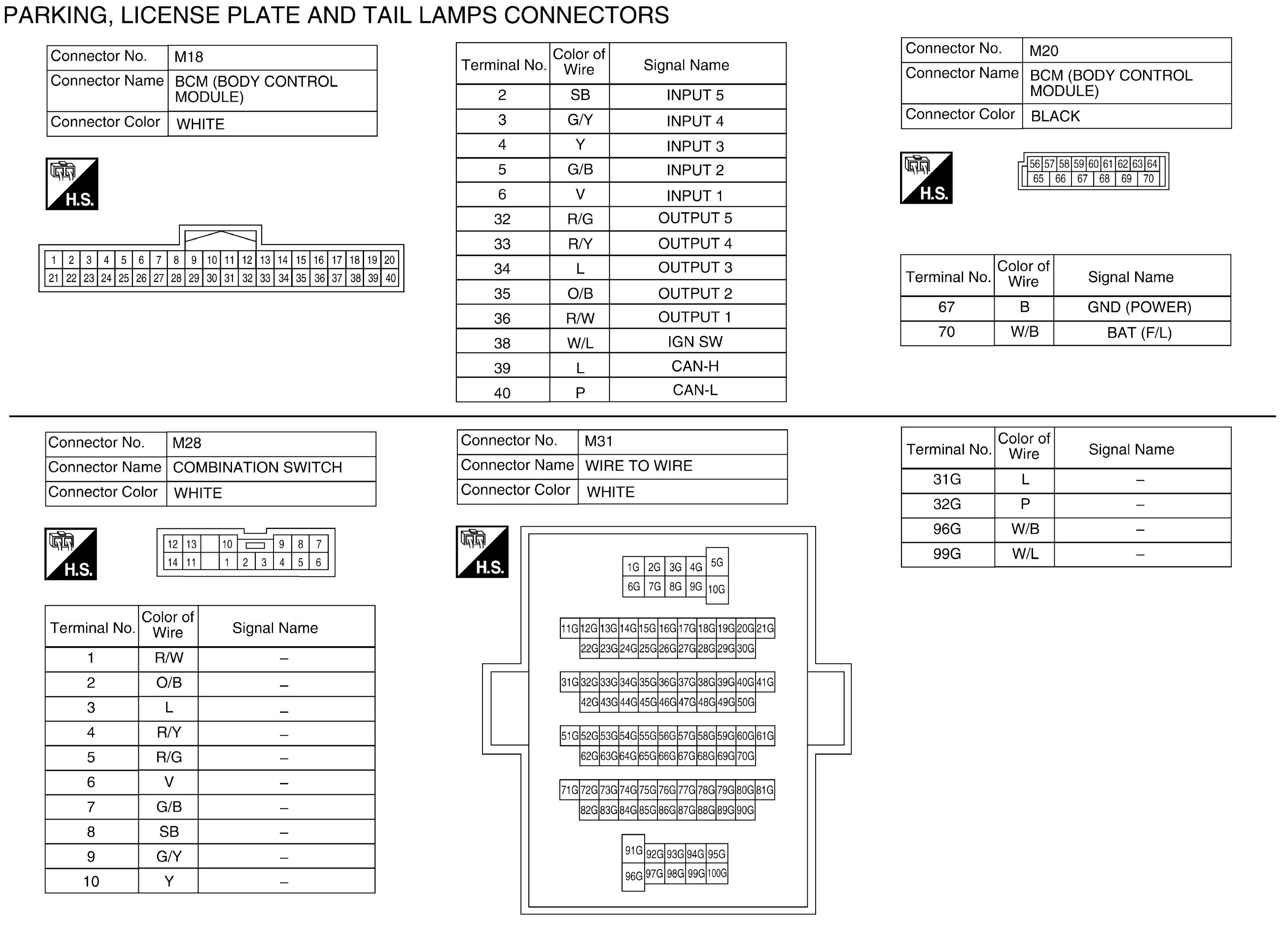

Fig 3: Parking, License Plate And Tail Lamps Connector End View (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

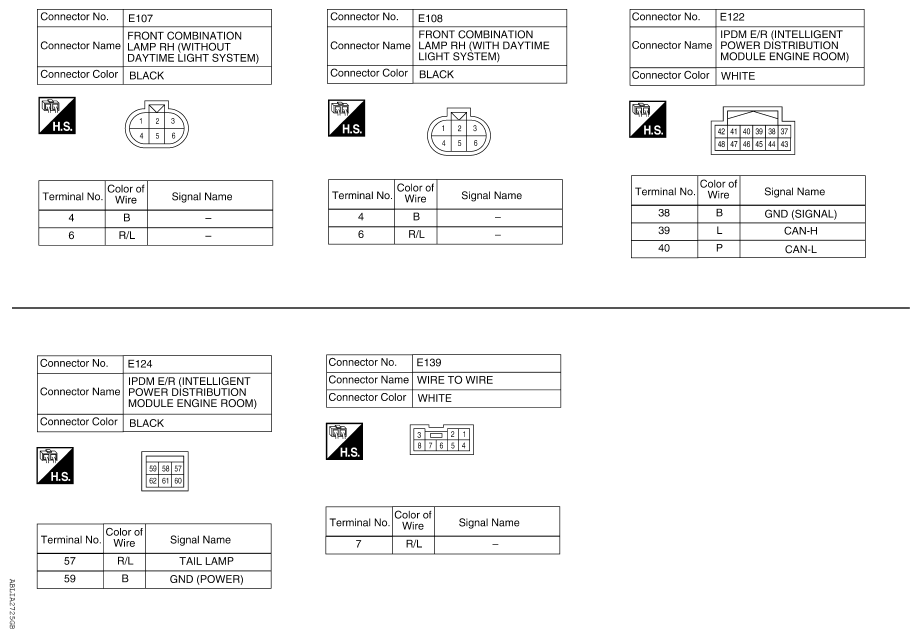

Fig 4: Parking, License Plate And Tail Lamps Connector End View (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

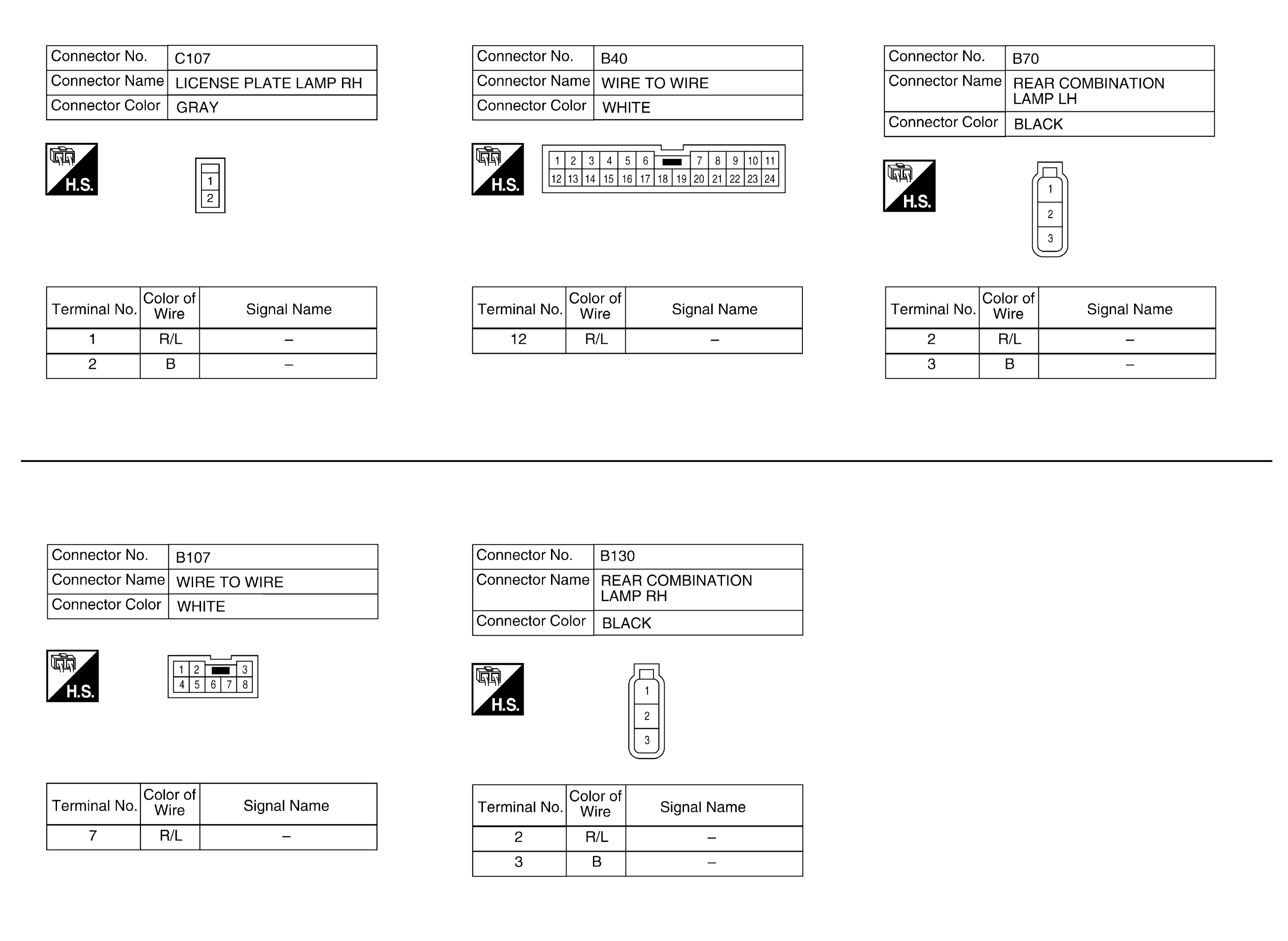

Fig 5: Parking, License Plate And Tail Lamps Connector End View (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

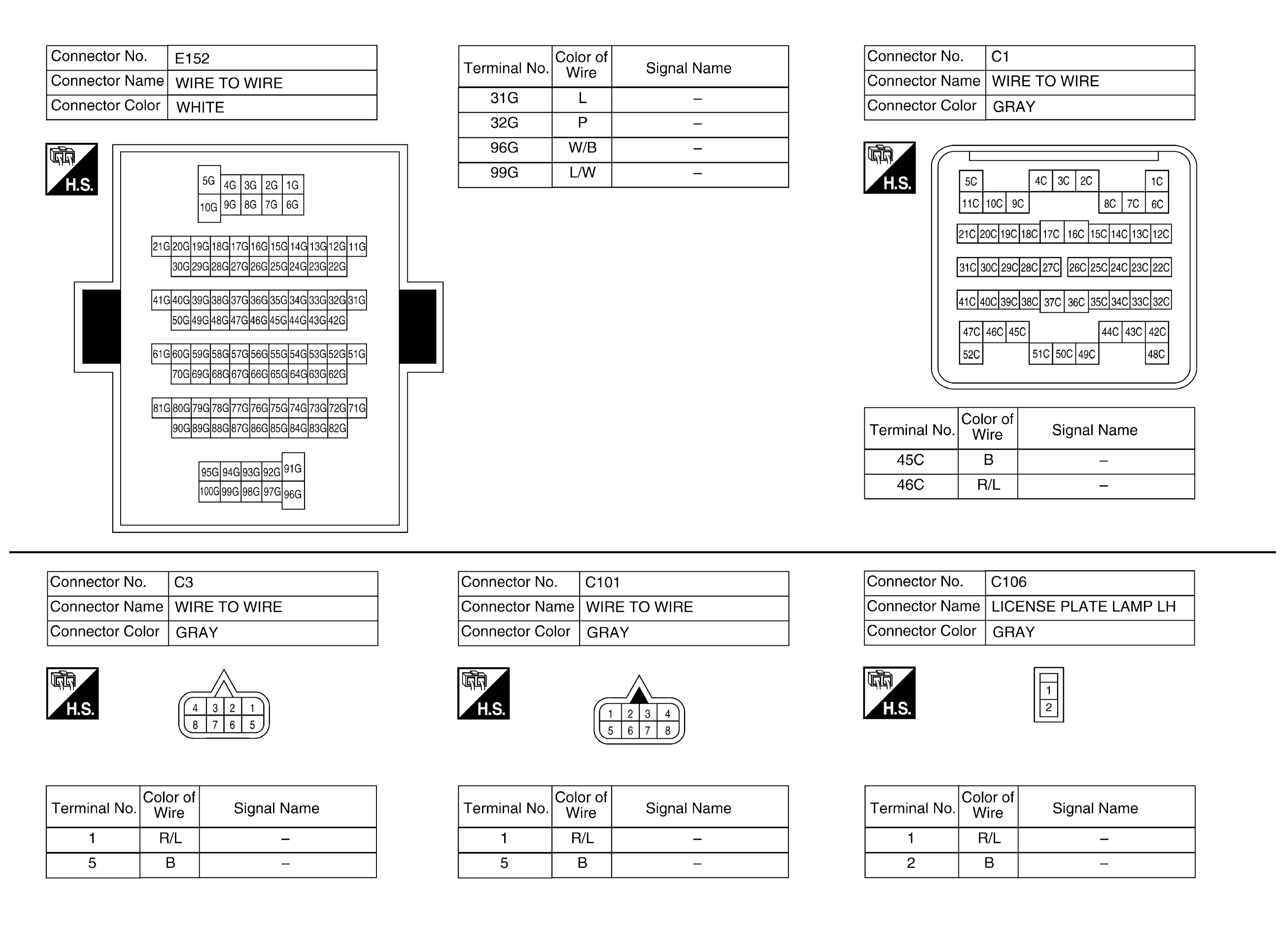

Fig 6: Parking, License Plate And Tail Lamps Connector End View (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
