WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

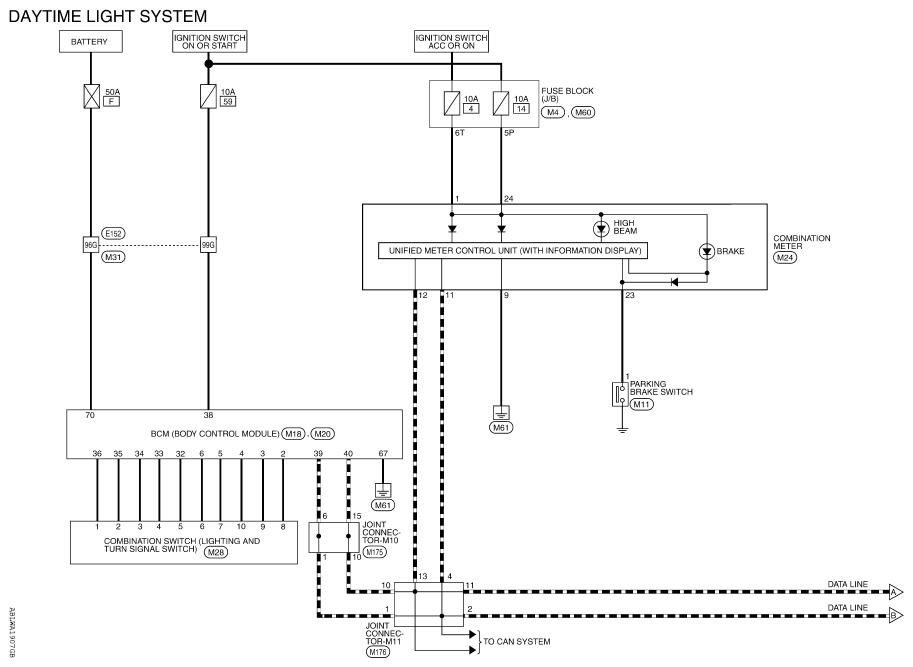

Fig 1: Daytime Light System - Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

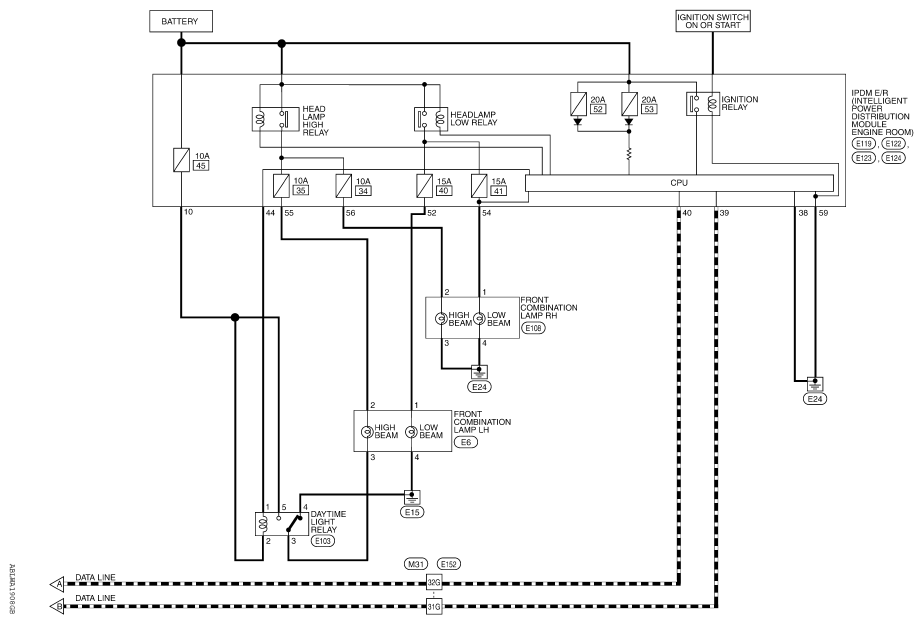

Fig 2: Daytime Light System - Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

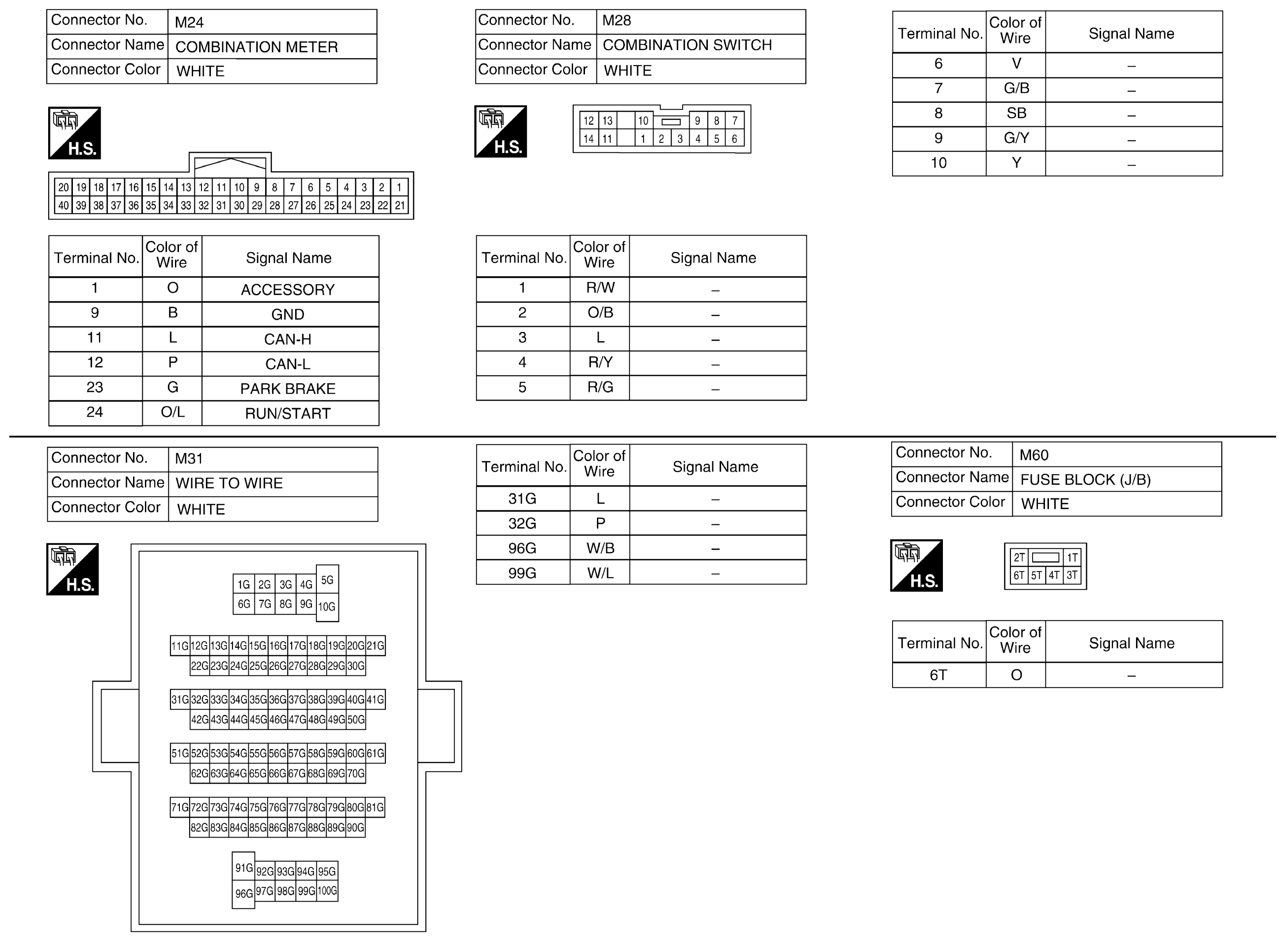

Fig 3: Daytime Light System Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

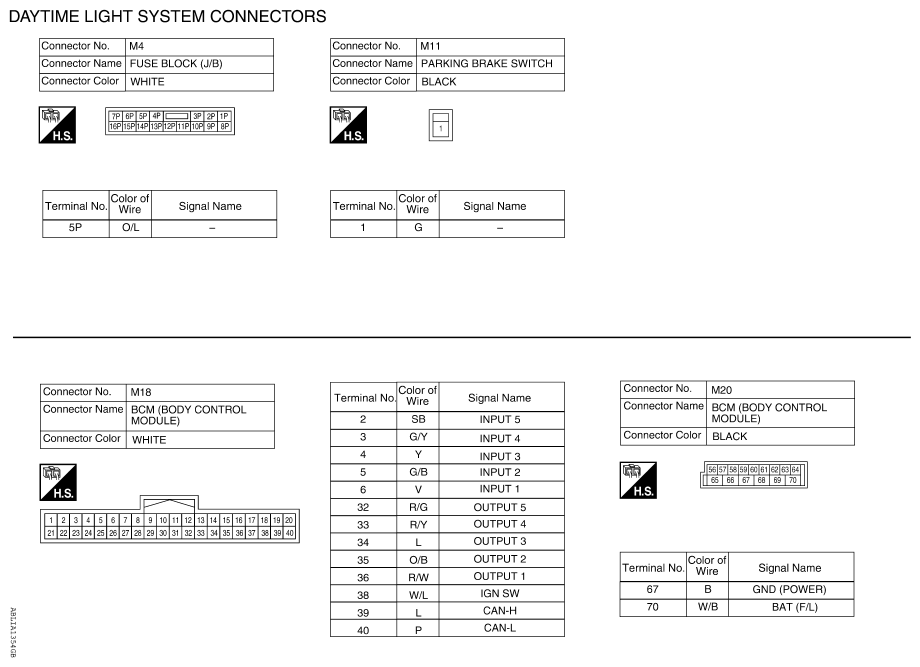

Fig 4: Daytime Light System Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

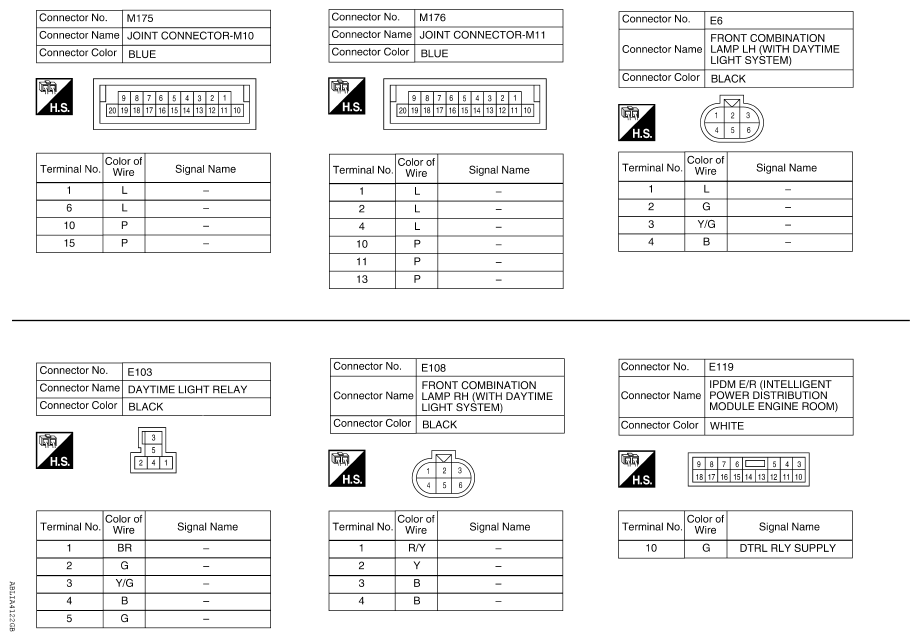

Fig 5: Daytime Light System Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

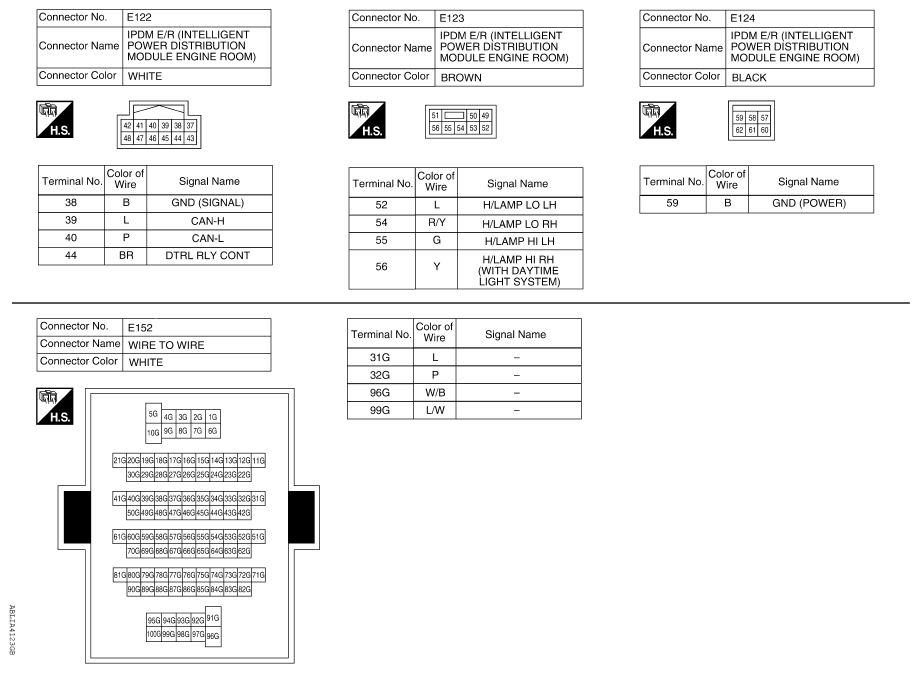

Fig 6: Daytime Light System Connector End View (4 Of 4)
