FRONT FOG LAMP: Aiming Adjustment

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

Before performing aiming adjustment, check the following.

Keep all tires inflated to correct pressure.
Place vehicle on level ground.
See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.
When performing adjustment, if necessary, cover the headlamps and opposite fog lamp.

NOTE: Access adjustment screw from underneath front bumper. Use a suitable tool to adjust. Turn screw clockwise to raise pattern and counterclockwise to lower pattern.

Fig 1: Identifying Fog Lamp Blub And Adjustment Screw

Courtesy of NISSAN NORTH AMERICA, INC.

Set the distance between the screen and the center of the fog lamp lens as shown below.
Turn front fog lamps ON.

Fig 2: Identifying Distance Between Screen And Center Of Fog Lamp Lens
Courtesy of NISSAN NORTH AMERICA, INC.

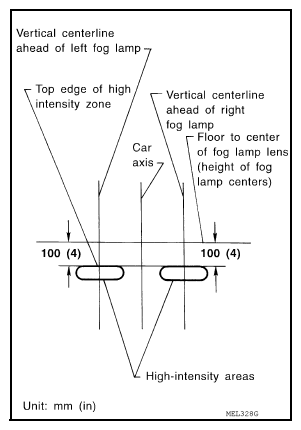

Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown below.

Fig 3: Identifying Front Fog Lamps Adjustment Zone
Courtesy of NISSAN NORTH AMERICA, INC.
