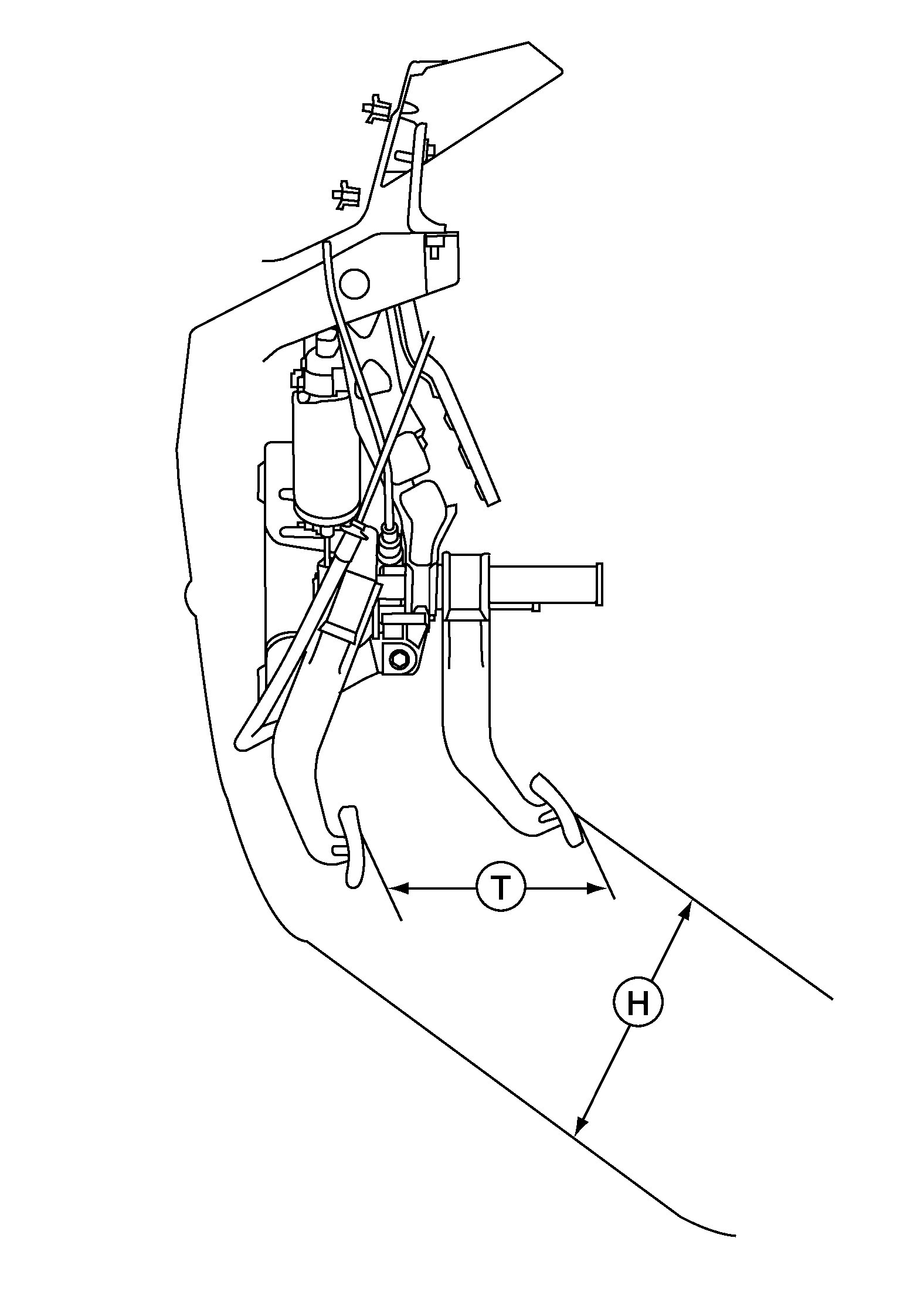

- Inspect the brake pedal free height (H) from the floor using Tool at a 90° angle to the floor as shown below.
Tool number: - (J-46532)
- Adjust the brake pedal height to specifications.CAUTION: When equipped with adjustable pedal, the pedal must be in the forward most (closest to the floor) position for pedal height measurement.
Unit: mm (in)
| Brake Pedal Specifications | |
| Pedal free height (H) with pedal in forward most position | Refer to "BRAKE PEDAL ". |
| Pedal travel (T) | Refer to "BRAKE PEDAL ". |
| Clearance between brake pedal bracket and threaded end of stop lamp switch and ASCD cancel switch | Refer to "BRAKE PEDAL ". |
