Hydraulic Circuit

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

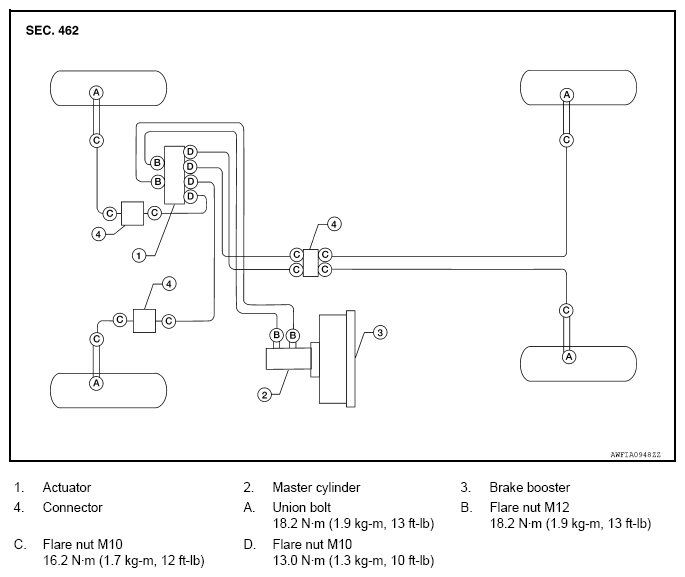

Fig 1: Brake Tube And Hose Hydraulic Circuit Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.
Make sure there is no interference with other parts when turning the steering wheel both clockwise and counterclockwise.
The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the parts. Replace applicable part with a new one, if necessary.
Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
Do not bend or twist brake hose sharply, or strongly pull it.
Refill with new specified brake fluid. Refer to "FOR USA AND CANADA: FLUIDS AND LUBRICANTS ".
Do not reuse drained brake fluid.
