Removal and Installation: Notes

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

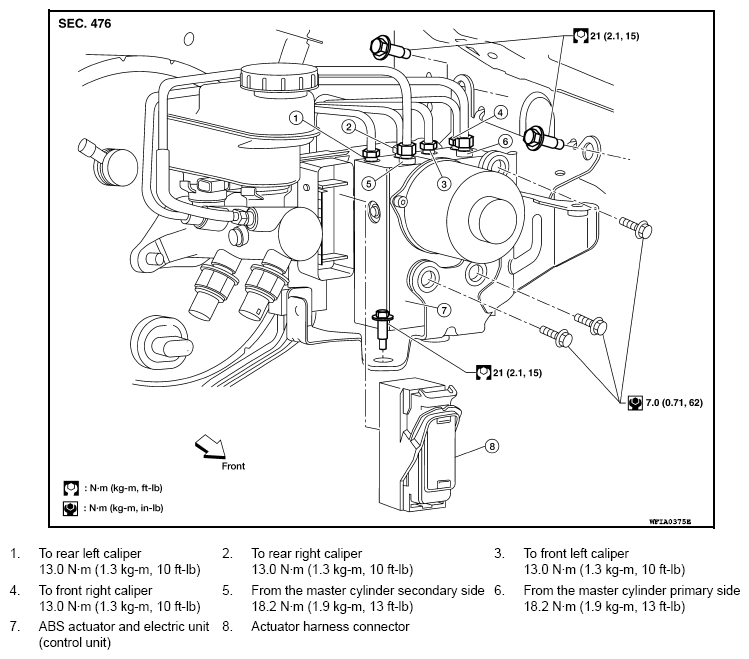

Fig 1: Actuator And Electric Unit Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
