Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative terminal.
Remove the cluster lid A. Refer to "REMOVAL AND INSTALLATION ".
Remove the combination meter lower screws (A), using power tool.

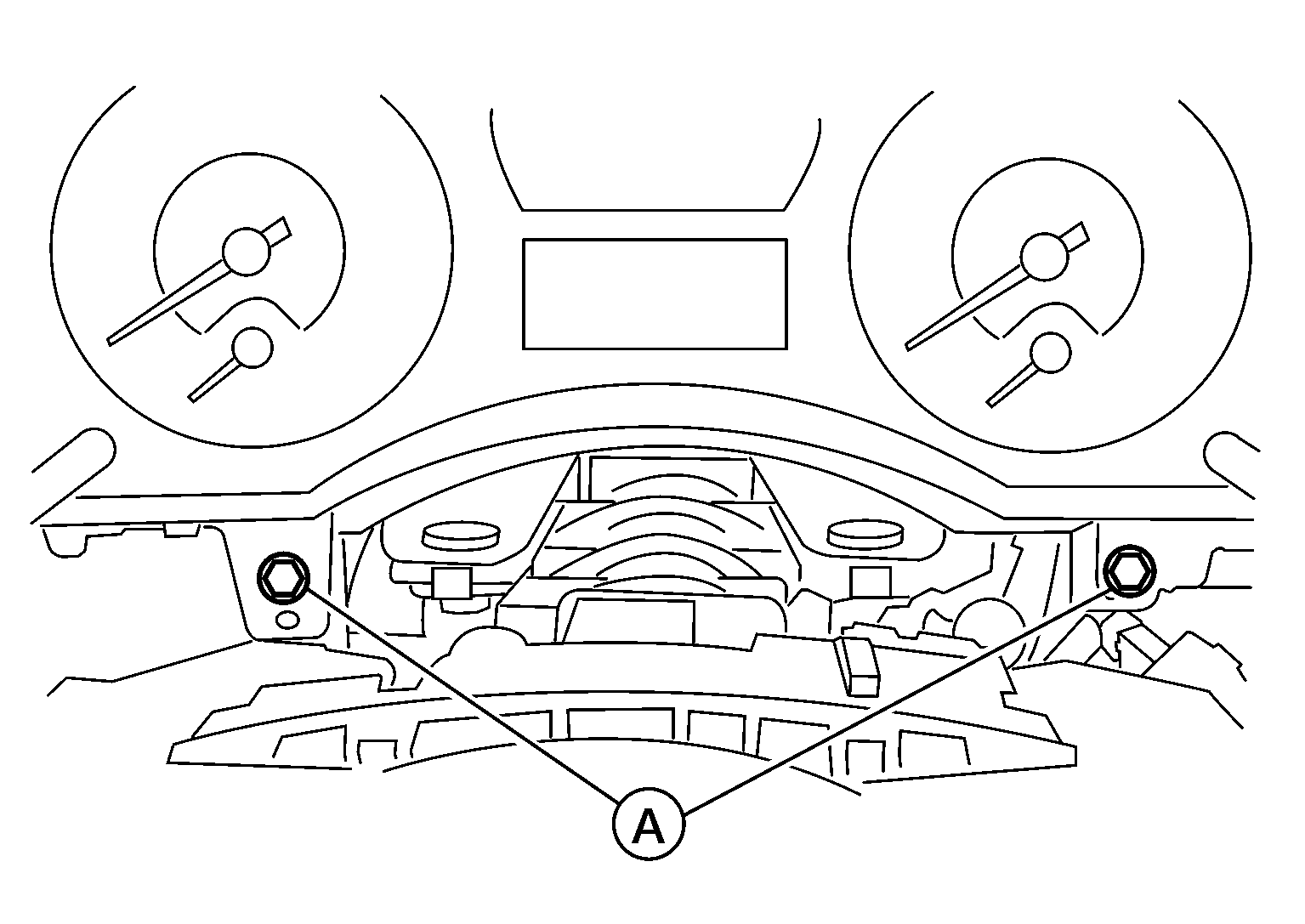

Fig 1: Identifying Combination Meter Lower Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the combination meter upper screws (A) using power tool, and pull out the combination meter (1).
Disconnect the combination meter connectors, and remove the combination meter (1).

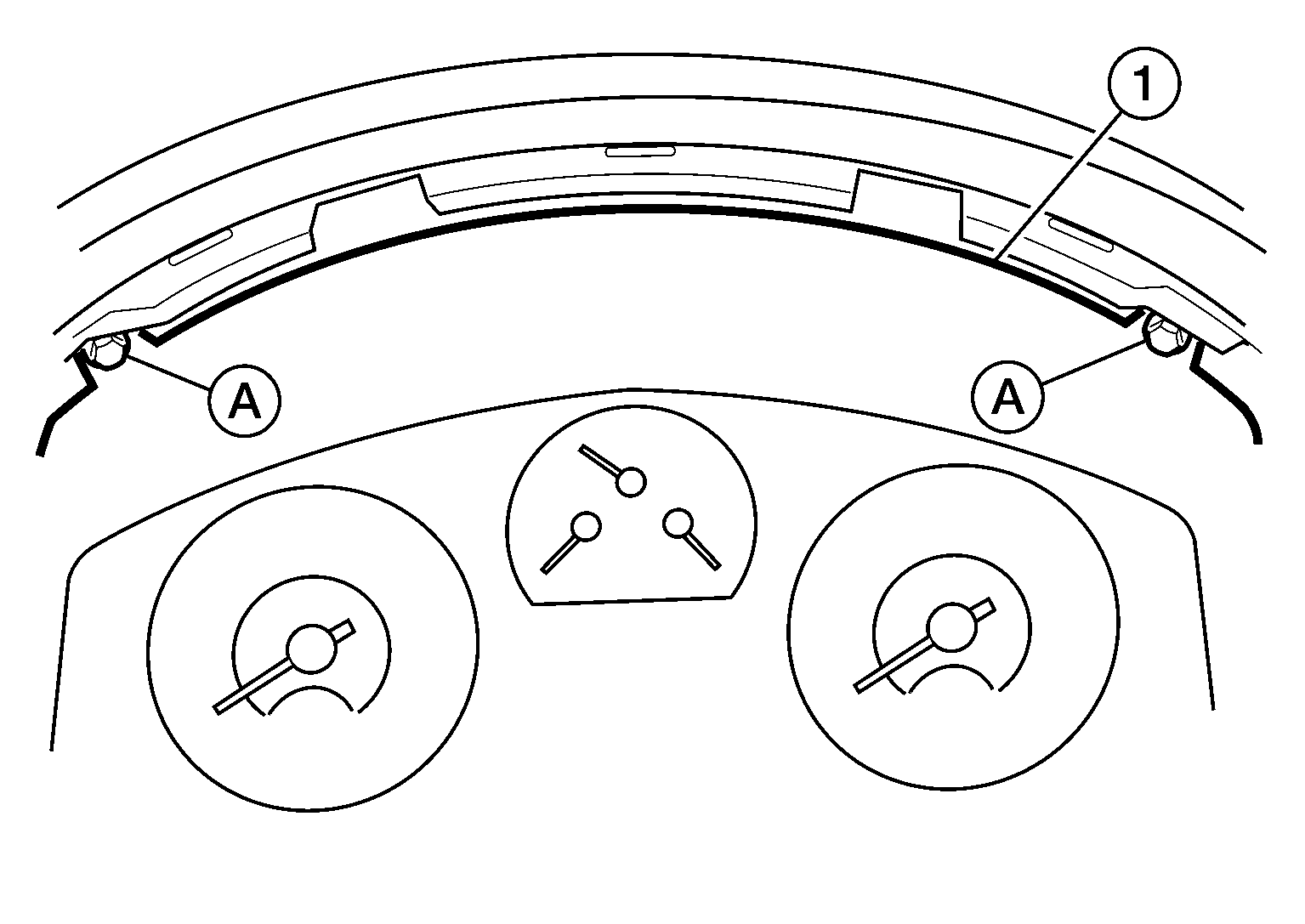

Fig 2: Identifying Combination Meter And Upper Screws
Courtesy of NISSAN NORTH AMERICA, INC.
