Inspection in Auto Active Test Mode
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

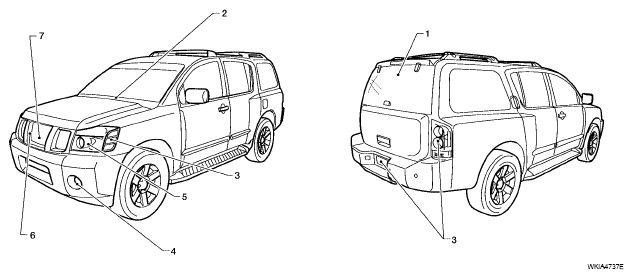

When auto active test mode is actuated, the following 7 steps are repeated 3 times.
| Operation sequence | Inspection Location | Operation |
|---|---|---|
| 1 | Rear window defogger | 10 seconds |
| 2 | Front wipers | LO for 5 seconds → HI for 5 seconds |
| 3 | Tail, license and parking lamps | 10 seconds |
| 4 | Front fog lamps (if equipped) | 10 seconds |
| 5 | Headlamps | LO for 10 seconds → HI on-off for 5 seconds |
| 6 | A/C compressor | ON → OFF 5 times |
| 7 | Cooling fan | 10 seconds |
