WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

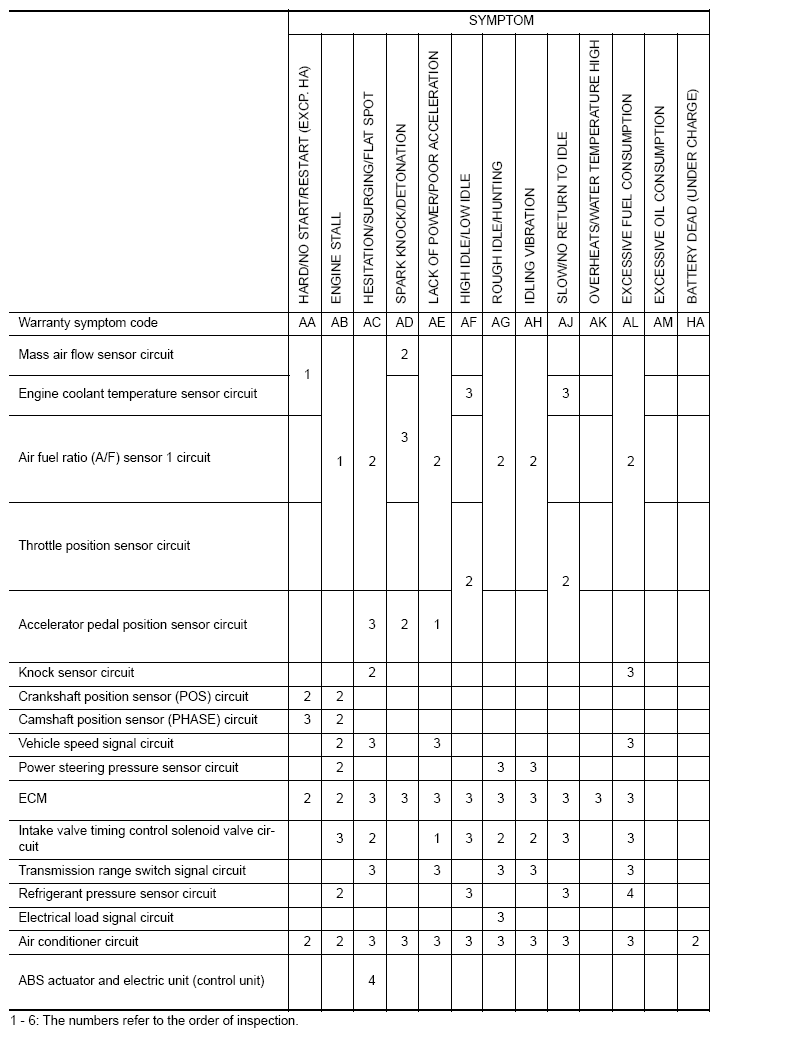

Fig 1: Engine Control System Symptoms Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
1 - 6: The numbers refer to the order of inspection.

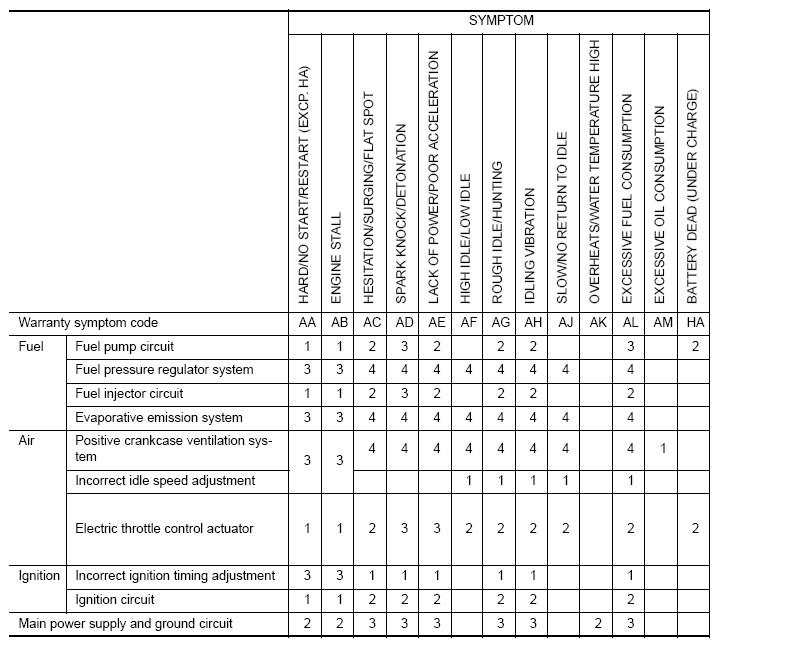

Fig 2: Engine Control System Symptoms Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
1 - 6: The numbers refer to the order of inspection.
