Without CONSULT

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel pump fuse located in IPDM E/R. Refer to "TERMINAL LAYOUT ".
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

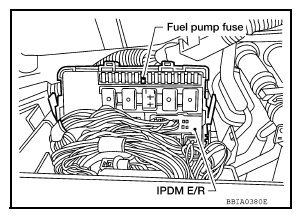

    Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
    G08690864Courtesy of NISSAN NORTH AMERICA, INC.
