Stop Lamp Switch

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect stop lamp switch harness connector.

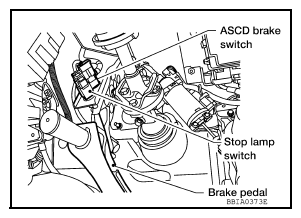

Fig 1: Identifying ASCD Brake Switch, Stop Lamp Switch And Brake Pedal
Courtesy of NISSAN NORTH AMERICA, INC.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

Conditions	Continuity
Brake pedal: Fully released	Should not exist.
Brake pedal: Slightly depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to "INSPECTION AND ADJUSTMENT ", and perform step 2 again.

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
Courtesy of NISSAN NORTH AMERICA, INC.
