Diagnosis Procedure

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OVERALL FUNCTION-I

    With CONSULT

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT.
    3. Check "BRAKE SW1" indication under the following conditions.
      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON

    Without CONSULT

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0 V
      Brake pedal: Fully released Battery voltage
      Fig 1: Checking Voltage Between ECM Terminal 108 And Ground
      G08690749Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO 2.

      NG: GO TO  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT

    Check voltage between ECM terminal 101 and ground under the following conditions.

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0 V
    Brake pedal: Slightly depressed Battery voltage
    Fig 2: Checking Voltage Between ECM Terminal 101 And Ground
    G08690750Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO  11.

    NG: GO TO  7.

  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

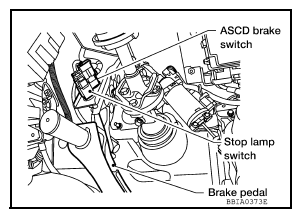

      Fig 3: Identifying ASCD Brake Switch, Stop Lamp Switch And Brake Pedal
      G08690751Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT or tester.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO  5.

      NG: GO TO 4.

      Fig 4: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
      G08690752Courtesy of NISSAN NORTH AMERICA, INC.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M31, E152
    • Fuse block (J/B) connector M4
    • 10 A fuse (No. 15)
    • Harness for open or short between ASCD brake switch and fuse

      : Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

      OK or NG

      OK: GO TO 6.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  11.

    NG: Replace ASCD brake switch. Refer to REMOVAL AND INSTALLATION .

  7. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.
      Fig 5: Identifying ASCD Brake Switch, Stop Lamp Switch And Brake Pedal
      G08690753Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT or tester.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO  9.

      NG: GO TO 8.

      Fig 6: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
      G08690754Courtesy of NISSAN NORTH AMERICA, INC.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M31, E152
    • Fuse block (J/B) connector M60
    • 10 A fuse (No. 21)
    • Harness for open or short between stop lamp switch and battery

      : Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

      OK or NG

      OK: GO TO 10.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  10. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 11.

    NG: Replace stop lamp switch. Refer to REMOVAL AND INSTALLATION .

  11. CHECK INTERMITTENT INCIDENT

    Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

    :INSPECTION END
