Fuel Pump Control Module (FPCM)

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

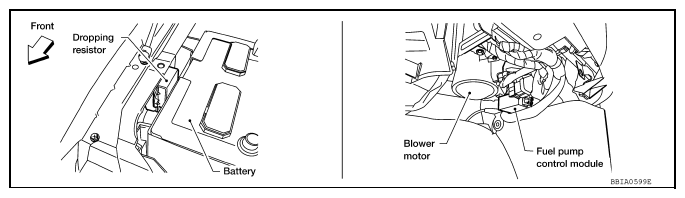

Fig 1: Identifying Fuel Pump Control Module, Blower Motor, Dropping Resistance And Battery

Courtesy of NISSAN NORTH AMERICA, INC.

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.

Check voltage between FPCM terminal 2 and ground under the following conditions.

Condition	Voltage
When engine cranking	Approx. 0 V
After starting engine	Approx. 5 V

If NG, replace fuel pump control module.

Fig 2: Checking Voltage Between Fuel Pump Control Module Terminal 2 And Ground
Courtesy of NISSAN NORTH AMERICA, INC.
