Diagnosis Procedure

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

      Fig 1: Identifying Body Ground Screws
      G08690518Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO 2.

      NG: Repair or replace ground connections.

  2. RETIGHTEN A/F SENSOR 1

    Loosen and retighten the A/F sensor 1.

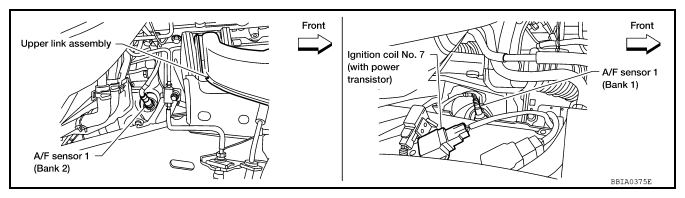

    Fig 2: Identifying A/F Sensor 1 & Ignition Coil
    G08690519Courtesy of NISSAN NORTH AMERICA, INC.

    Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

    : GO TO 3.

  3. CHECK EXHAUST GAS LEAK
    1. Start engine and run it at idle.
    2. Listen for an exhaust gas leak before three way catalyst (manifold).
      Fig 3: Checking For Exhaust Gas Leak
      G08690520Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO 4.

      NG: Repair or replace.

  4. CHECK FOR INTAKE AIR LEAK

    Listen for an intake air leak after the mass air flow sensor.

    OK or NG

    OK: GO TO 5.

    NG: Repair or replace.

  5. CLEAR THE SELF-LEARNING DATA

    With CONSULT

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT.
    3. Clear the self-learning control coefficient by touching "CLEAR" or "START".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171, P172, P0174 or P0175 detected? Is it difficult to start engine?

    Without CONSULT

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor harness connector.
    4. Restart engine and let it idle for at least 5 seconds.
    5. Stop engine and reconnect mass air flow sensor harness connector.
    6. Make sure DTC P0102 is displayed.
    7. Erase the DTC memory. Refer to "DTC INDEX ".
    8. Make sure DTC P0000 is displayed.
    9. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?

      Is it difficult to start engine?

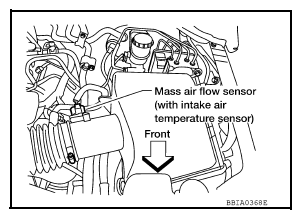

      Fig 4: Identifying Mass Air Flow Sensor
      G08690521Courtesy of NISSAN NORTH AMERICA, INC.

      Yes or No

      Yes: Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to P0171, P0174 FUEL INJECTION SYSTEM FUNCTION  or P0172, P0175 FUEL INJECTION SYSTEM FUNCTION .

      No: GO TO 6.

  6. CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect A/F sensor 1 harness connector.

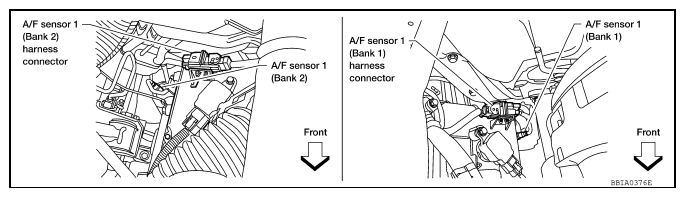

      Fig 5: Identifying Air Fuel Ratio Sensor 1 And Harness Connector
      G08690522Courtesy of NISSAN NORTH AMERICA, INC.
    3. Turn ignition switch ON.
    4. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT or tester.

      Voltage: Battery voltage

      Fig 6: Checking Voltage Between Air Fuel Ratio Sensor 1 Terminal 4 And Ground
      G08690523Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO  8.

      NG: GO TO 7.

  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E5, F14
    • IPDM E/R harness connector E119
    • 15 A fuse (No. 54)
    • Harness for open or short between A/F sensor 1 and fuse

      : Repair or replace harness or connectors.

  8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.

      Refer to WIRING DIAGRAM .

        A/F sensor 1 terminal ECM terminal
      Bank1 1 35
      2 56
      Bank 2 1 16
      2 75

      Continuity should exist.

    4. Check harness continuity between the following terminals and ground.

      Refer to WIRING DIAGRAM .

      Bank 1 Bank 2
      A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
      1 35 1 16
      2 56 2 75

      Continuity should not exist.

    5. Also check harness for short to power.

      OK or NG

      OK: GO TO 9.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 10.

    NG: GO TO  13.

  10. CHECK MASS AIR FLOW SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 11.

    NG: Replace mass air flow sensor. Refer to "REMOVAL AND INSTALLATION ".

  11. CHECK PCV VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 12.

    NG: Repair or replace PCV valve. Refer to ROCKER COVER .

  12. CHECK INTERMITTENT INCIDENT

    Perform "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

    OK or NG

    OK: GO TO 13.

    NG: Repair or replace.

  13. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace malfunctioning air fuel ratio (A/F) sensor 1. Refer to EXHAUST MANIFOLD AND THREE WAY CATALYST .

    CAUTION:
    • Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m (1.6 ft) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads (using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12) and approved anti-seize lubricant.

    INSPECTION END
