Diagnosis Procedure

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

      Fig 1: Identifying Body Ground Screws
      G08690513Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO 2.

      NG: Repair or replace ground connections.

  2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Disconnect A/F sensor 1 harness connector.

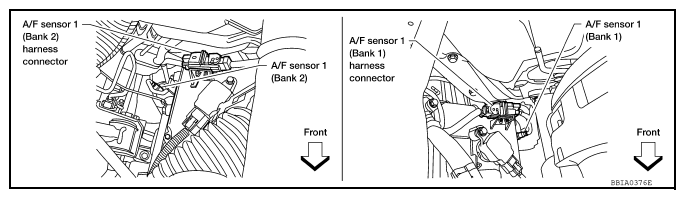

      Fig 2: Identifying Air Fuel Ratio Sensor 1 And Harness Connector
      G08690514Courtesy of NISSAN NORTH AMERICA, INC.
    2. Turn ignition switch ON.
    3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT or tester.

      Voltage: Battery voltage

      Fig 3: Checking Voltage Between Air Fuel Ratio Sensor 1 Terminal 4 And Ground
      G08690515Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO  4.

      NG: GO TO 3.

  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E5, F14
    • IPDM E/R harness connector E119
    • 15 A fuse (No. 54)
    • Harness for open or short between A/F sensor 1 and fuse

      : Repair or replace harness or connectors.

  4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.

      Refer to WIRING DIAGRAM .

        A/F sensor 1 terminal ECM terminal
      Bank1 1 35
      2 56
      Bank 2 1 16
      2 75

      Continuity should exist.

    4. Check harness continuity between the following terminals and ground.

      Refer to WIRING DIAGRAM .

      Bank 1 Bank 2
      A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
      1 35 1 16
      2 56 2 75

      Continuity should not exist.

    5. Also check harness for short to power.

      OK or NG

      OK: GO TO 5.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK INTERMITTENT INCIDENT

    Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

    OK or NG

    OK: GO TO 6.

    NG: Repair or replace.

  6. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace malfunctioning air fuel ratio (A/F) sensor 1. Refer to EXHAUST MANIFOLD AND THREE WAY CATALYST .

    CAUTION:
    • Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m (1.6 ft) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads (using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12) and approved anti-seize lubricant.

    INSPECTION END
