Diagnosis Procedure

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
  Refer to "GROUND INSPECTION ".

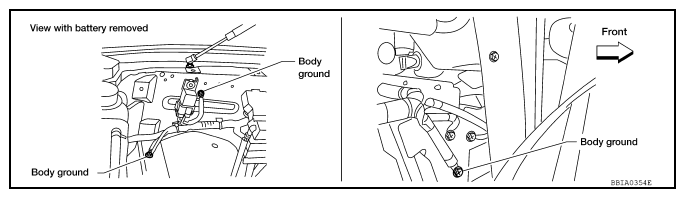

  Fig 1: Identifying Body Ground Screws
  Courtesy of NISSAN NORTH AMERICA, INC.

  OK or NG

  OK: GO TO 2.

  NG: Repair or replace ground connections.
CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.

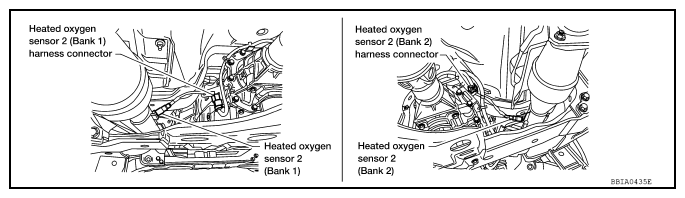

  Fig 2: Identifying Heated Oxygen Sensor 2 And Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Turn ignition switch ON.
3. Check voltage between HO2S2 terminal 3 and ground with CONSULT or tester.
  Voltage: Battery voltage

  Fig 3: Checking HO2S2 Power Supply Circuit Voltage
  Courtesy of NISSAN NORTH AMERICA, INC.

  OK or NG

  OK: GO TO 4.

  NG: GO TO 3.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- IPDM E/R harness connector E119
- 15 A fuse (No. 54)
- Harness for open or short between heated oxygen sensor 2 and fuse
  : Repair harness or connectors.

CHECK HO2S2 HEATER OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

Turn ignition switch OFF.
Disconnect ECM harness connector.

Check harness continuity between ECM terminal and HO2S2 terminal as follows.

Refer to WIRING DIAGRAM .

DTC	Terminals		Bank
DTC	ECM	Sensor	Bank
P0037, P0038	6	2	1
P0057, P0058	25	2	2

Continuity should exist.

Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 5.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 6.

NG: Replace malfunctioning heated oxygen sensor 2.
CHECK INTERMITTENT INCIDENT
Refer to "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

INSPECTION END
