Procedure A

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E120.
3. Check voltage between IPDM E/R terminal 22 and ground with CONSULT or tester.
  Voltage: Battery voltage

  OK or NG

  OK: GO TO 3.

  NG: GO TO 2.

  Fig 1: Checking Voltage Between IPDM E/R Terminal 22 And Ground
  Courtesy of NISSAN NORTH AMERICA, INC.
DETECT MALFUNCTIONING PART
Check the following.
- 40 A fusible link (letter L)
- 25 A fusible link (letter N)
- Harness for open or short between IPDM E/R and battery
  : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN OR SHORT
1. Disconnect cooling fan motor harness connector.
2. Check harness continuity between cooling fan motor terminal 1 and IPDM E/R terminal 24, cooling fan motor terminal 2 and ground.
  Refer to WIRING DIAGRAM .

  Continuity should exist .
3. Also check harness for short to ground and short to power.
  OK or NG

  OK: GO TO 4.

  NG: Repair open circuit or short to ground or short to power in harness or connectors.

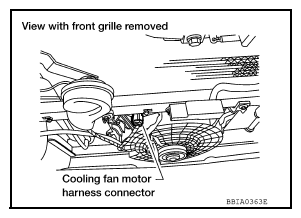

  Fig 2: Identifying Cooling Fan Motor Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.
CHECK COOLING FAN MOTOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 5.

NG: Replace cooling fan motor. Refer to COOLING FAN PULLEY .
CHECK INTERMITTENT INCIDENT
Perform "HOW TO CHECK TERMINAL " and "INTERMITTENT INCIDENT ".

OK or NG

OK: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".

NG: Repair or replace harness connectors.
