Wiring Diagram - With Intelligent Key System

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

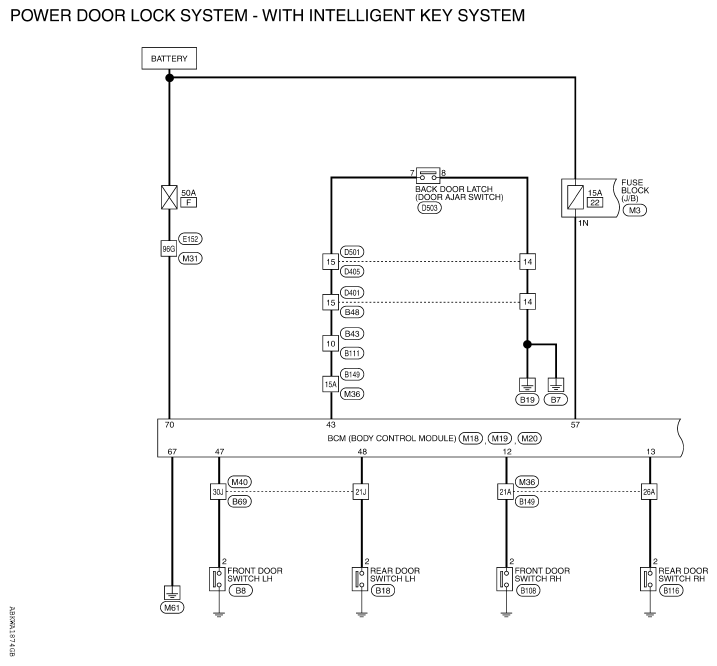

Fig 1: Power Door Lock System - With Intelligent Key System - Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

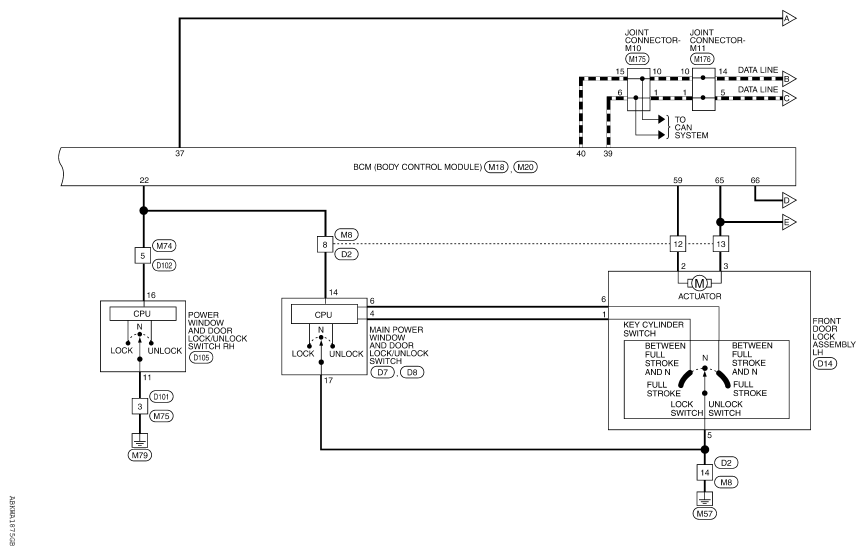

Fig 2: Power Door Lock System - With Intelligent Key System - Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

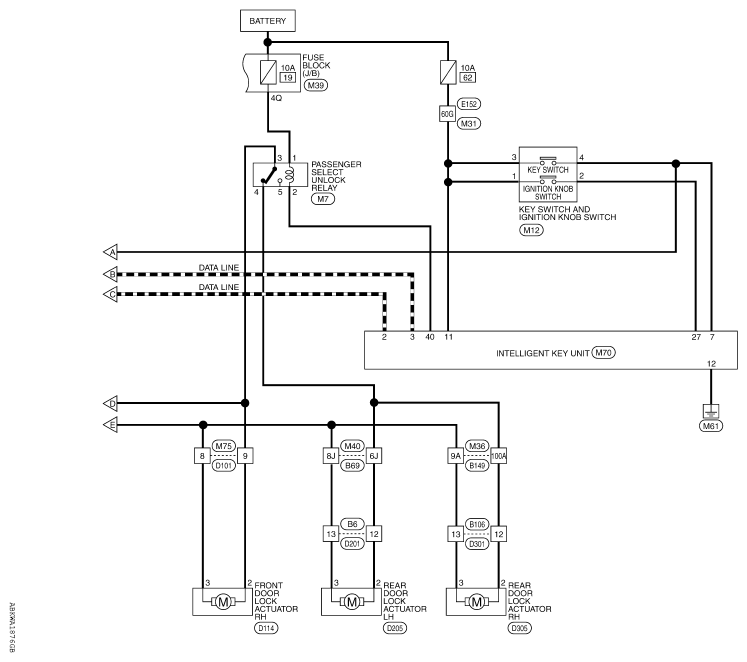

Fig 3: Power Door Lock System - With Intelligent Key System - Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

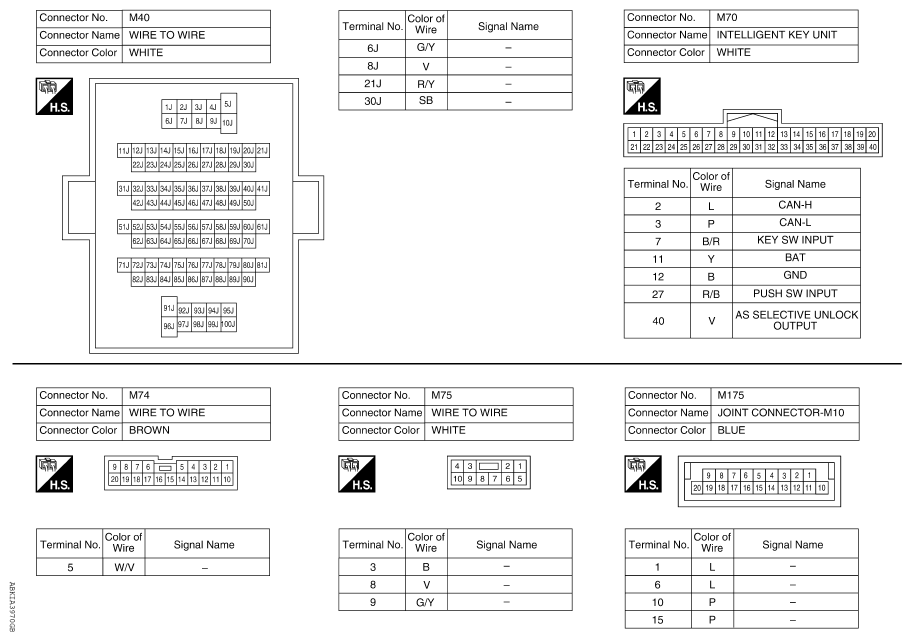

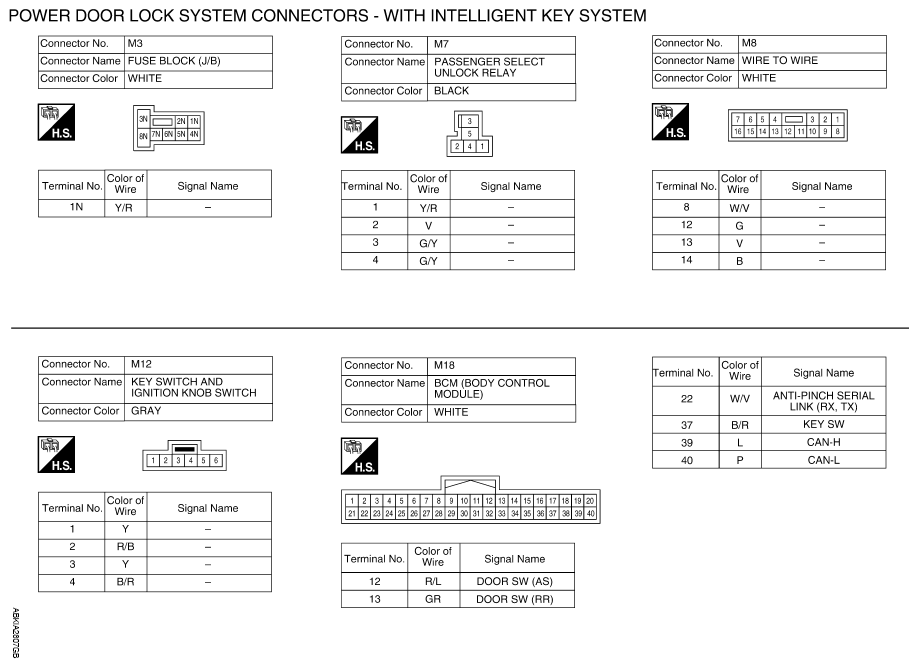

Fig 4: Power Door Lock System Connector End View - With Intelligent Key System (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

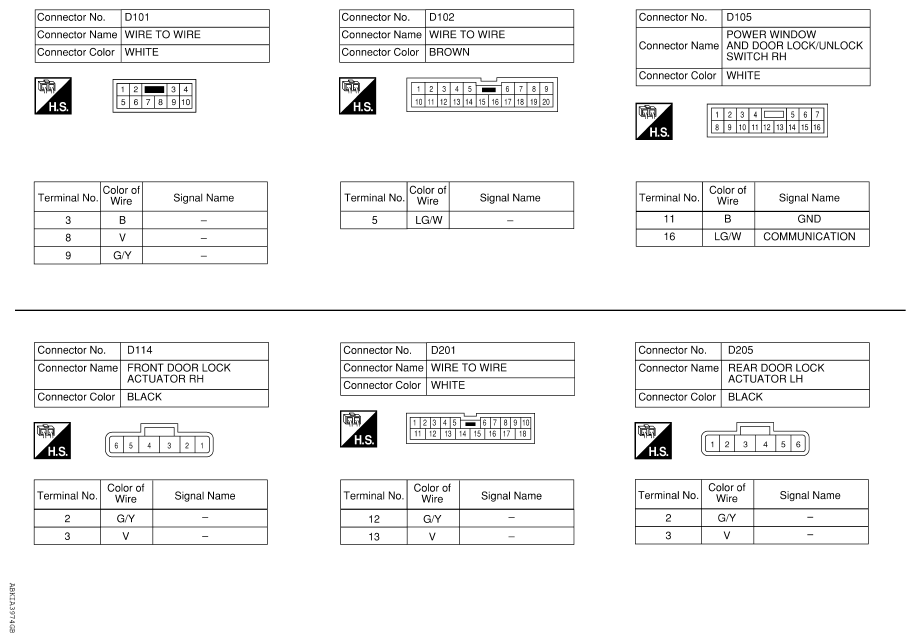

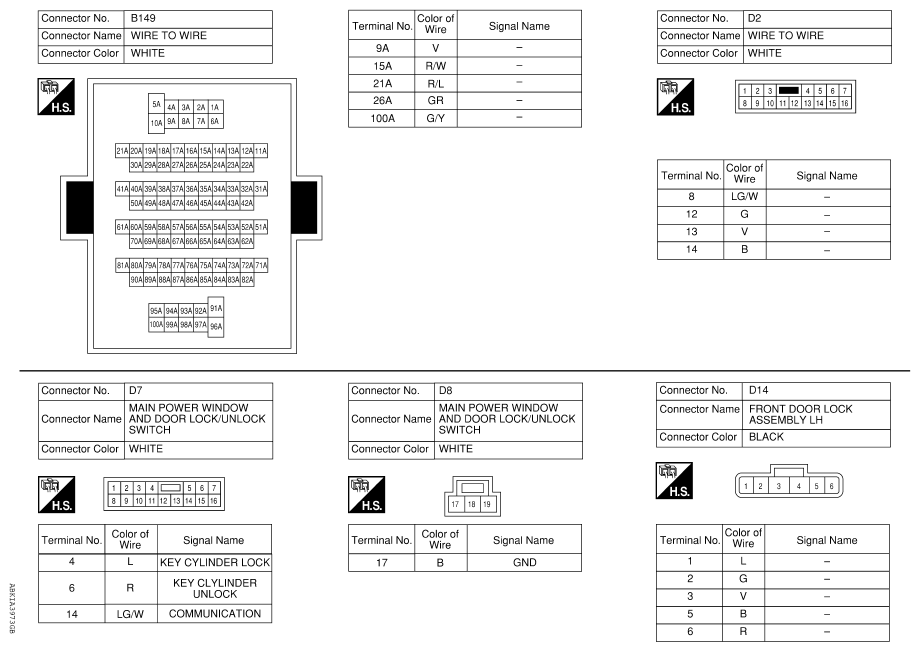

Fig 5: Power Door Lock System Connector End View - With Intelligent Key System (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

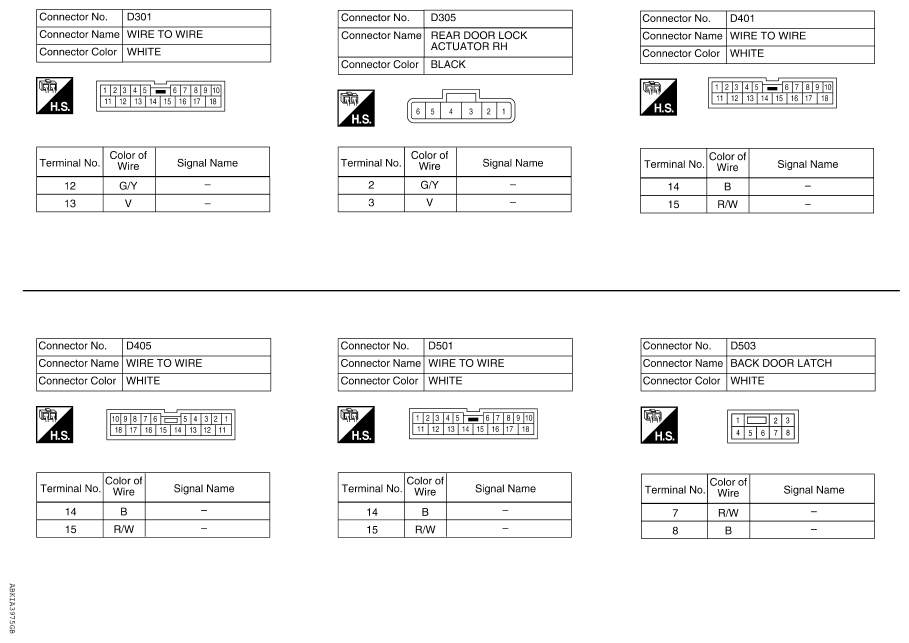

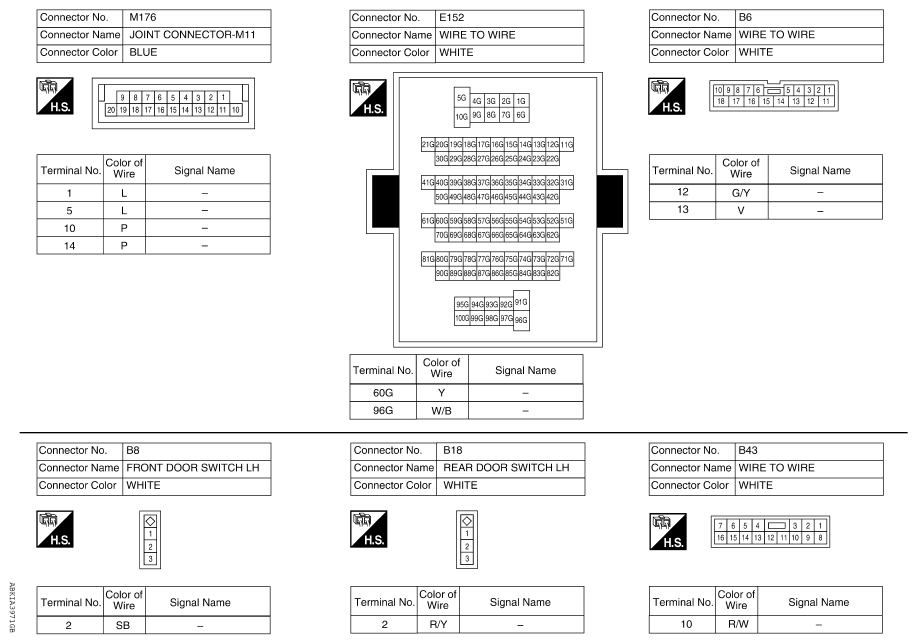

Fig 6: Power Door Lock System Connector End View - With Intelligent Key System (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

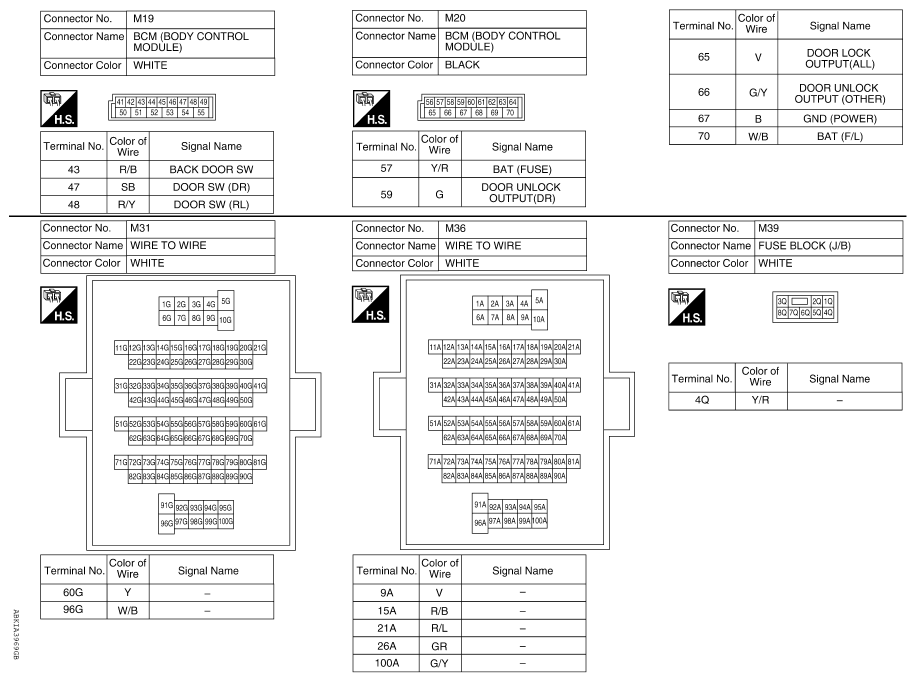

Fig 7: Power Door Lock System Connector End View - With Intelligent Key System (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

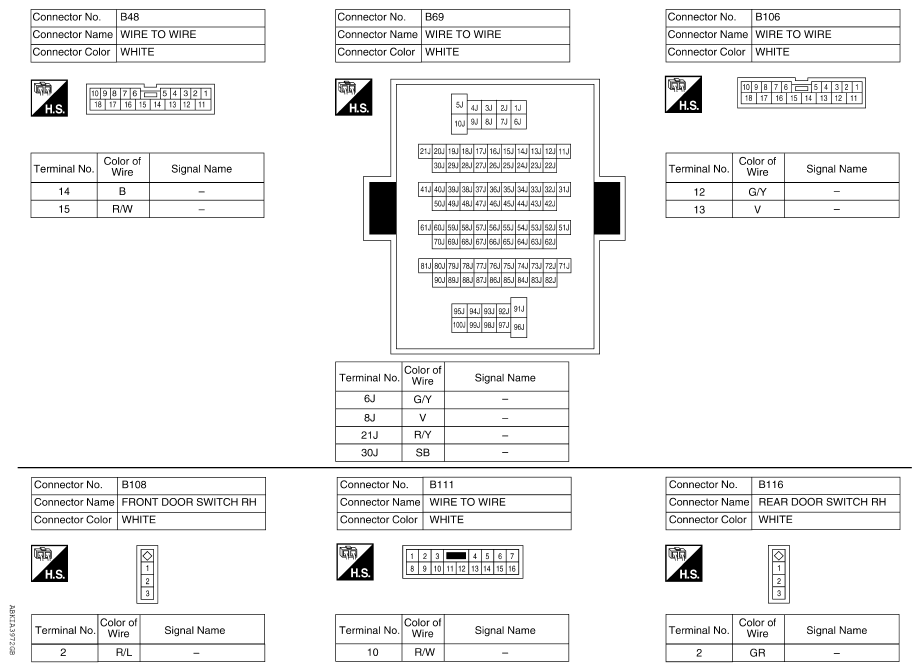

Fig 8: Power Door Lock System Connector End View - With Intelligent Key System (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Power Door Lock System Connector End View - With Intelligent Key System (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Power Door Lock System Connector End View - With Intelligent Key System (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Power Door Lock System Connector End View - With Intelligent Key System (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
