Fig 1: Intelligent Key Component Parts Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

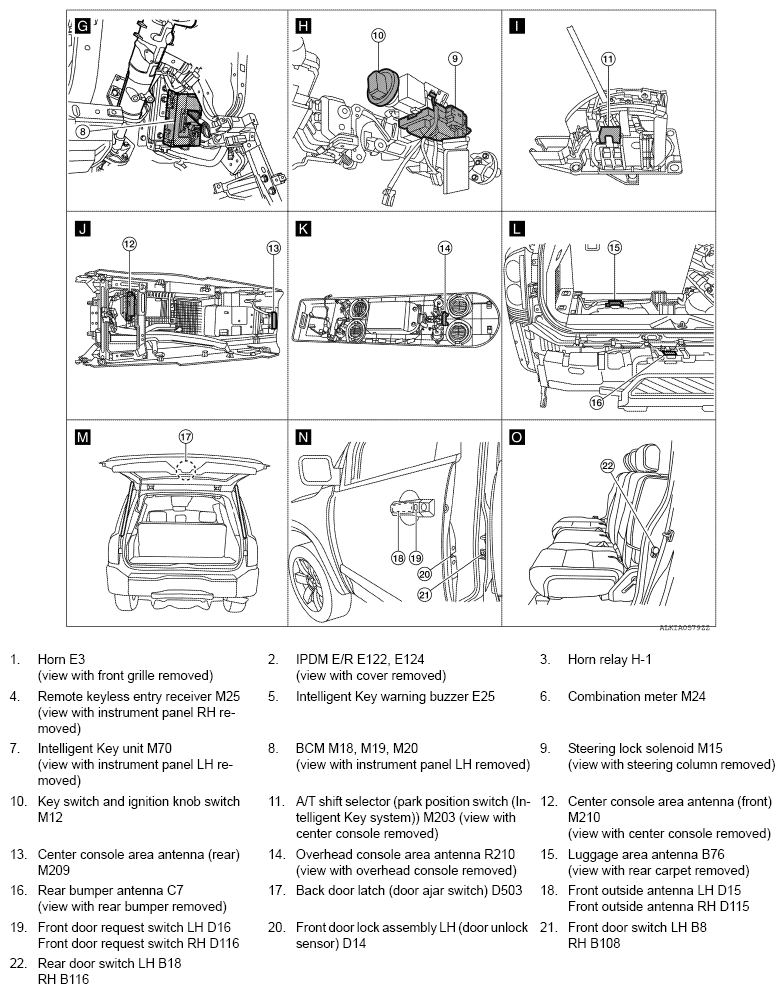

Fig 2: Intelligent Key Component Parts Location (2 Of 2)
