Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the starter motor assembly harness terminal "1" (B) nut and terminal "1" (B) cable.
  3. Disconnect terminal "2" (S) connector.
  4. Remove terminal "2" (S) harness clips from brackets.
  5. Remove the two starter motor assembly bolts (A), using power tools.

    <==: Front

  6. Remove the starter motor assembly (1).

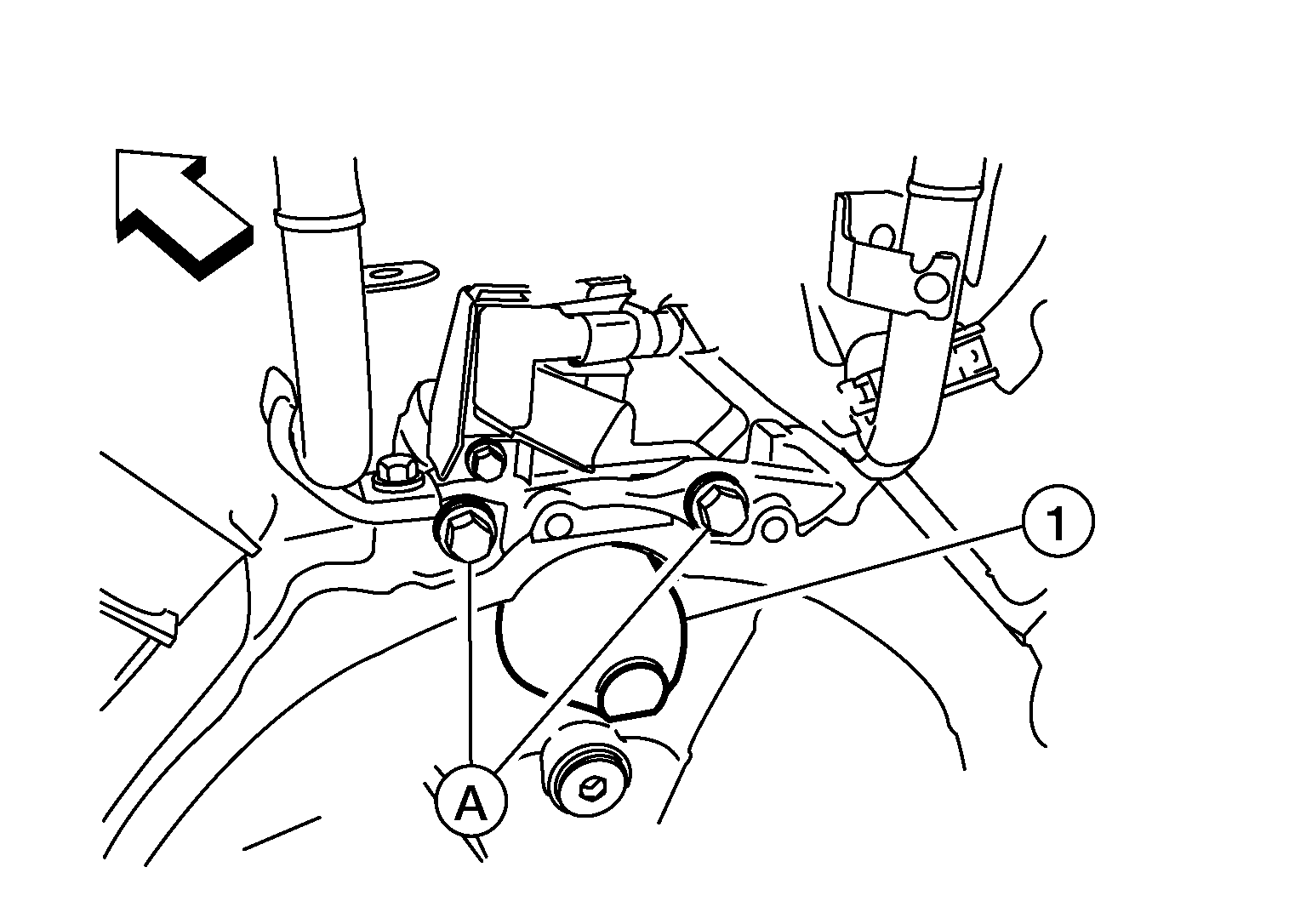

    Fig 1: Identifying Starter Motor Assembly And Bolts
    G06590263Courtesy of NISSAN NORTH AMERICA, INC.
