Section 889 (Starting System)
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work Flow (Without GR8-1200 NI)
>>
Overall Sequence
Overall Sequence
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

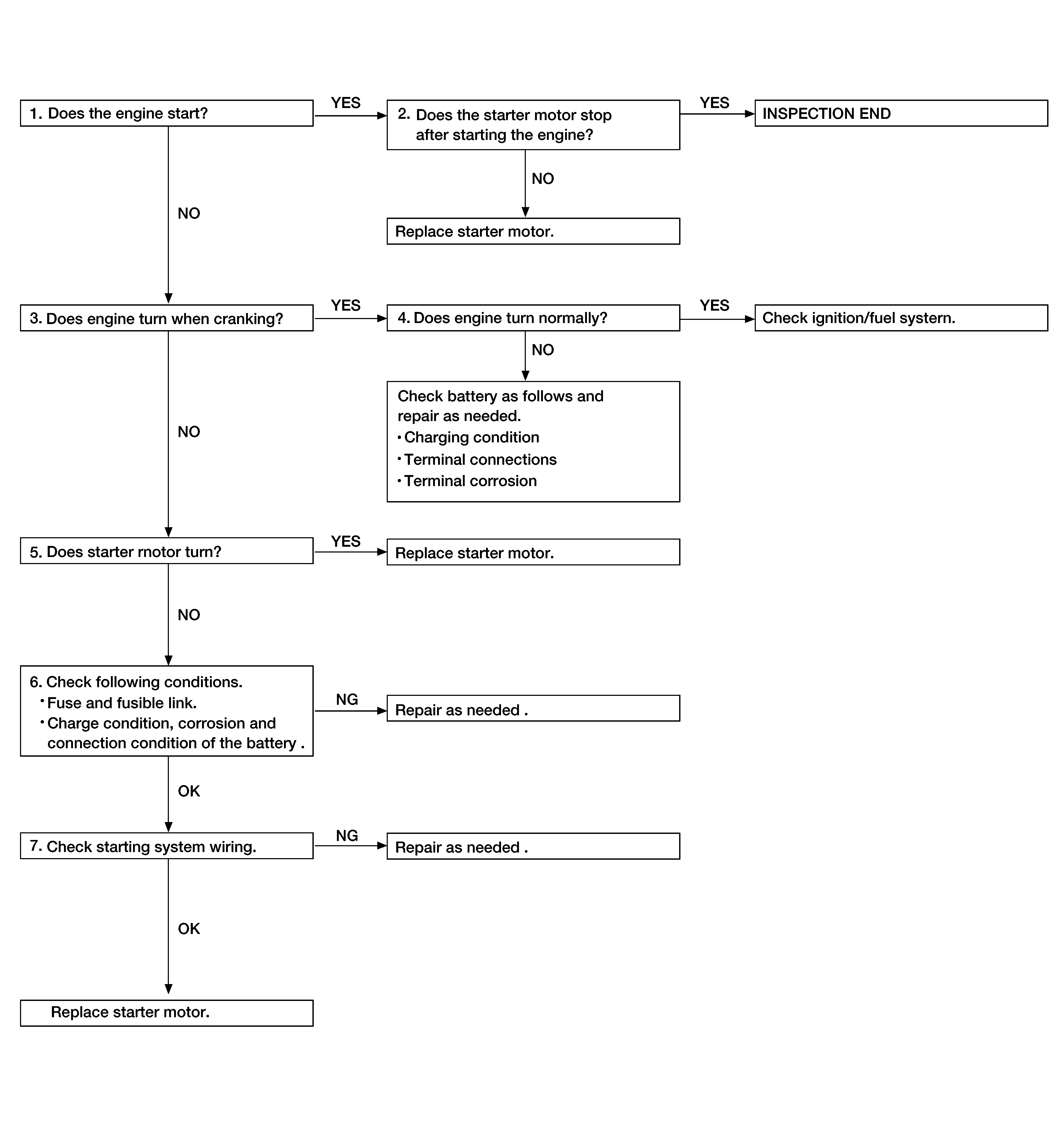

Fig 1: Diagnosis And Repair Workflow Overall Sequence Chart (Without GR8-1200 NI)
Courtesy of NISSAN NORTH AMERICA, INC.
