Wiring Diagram - With Intelligent Key System

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

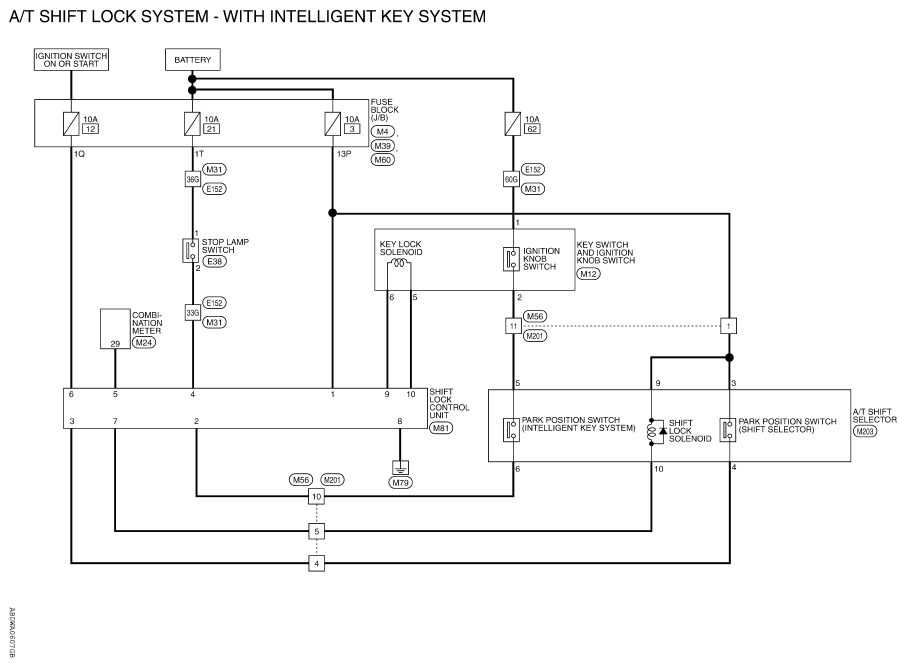

Fig 1: A/T Shift Lock System - Wiring Diagram (With Intelligent Key System)

Courtesy of NISSAN NORTH AMERICA, INC.

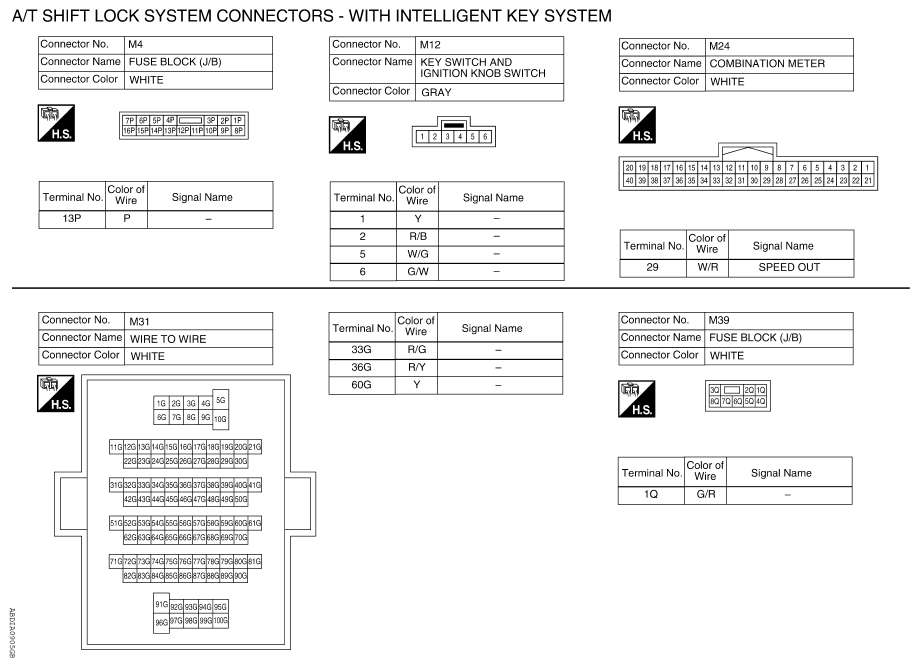

Fig 2: A/T Shift Lock System Connector End View - With Intelligent Key System (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

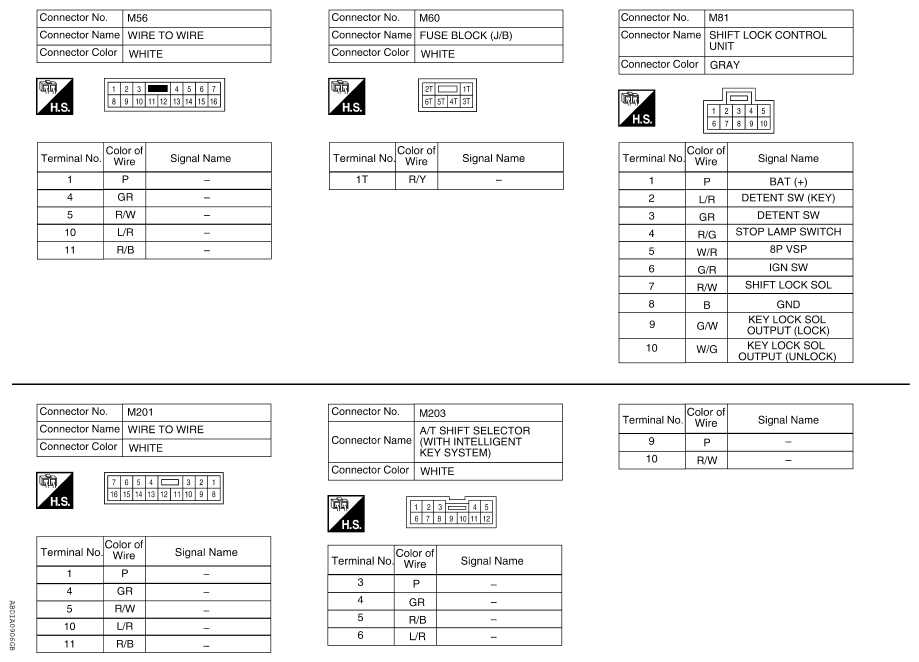

Fig 3: A/T Shift Lock System Connector End View - With Intelligent Key System (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

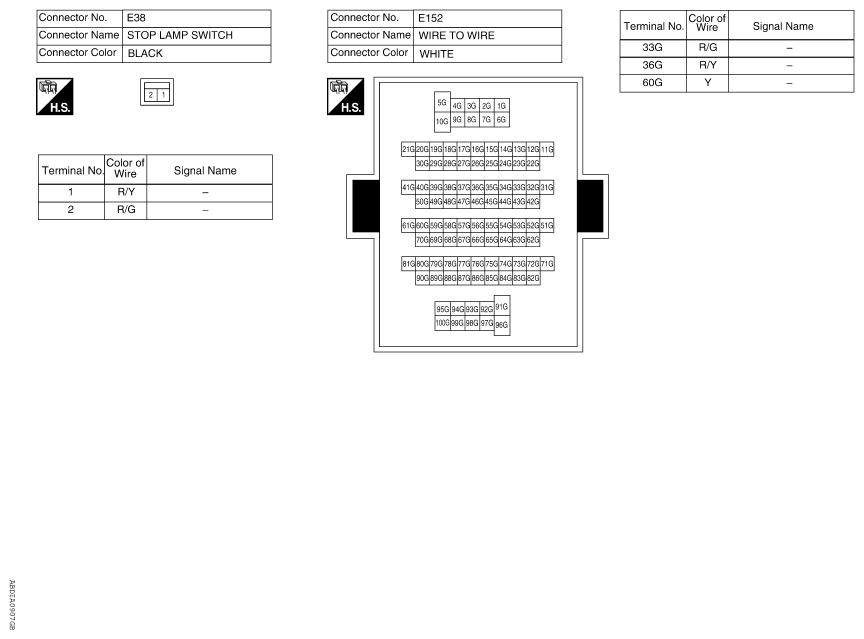

Fig 4: A/T Shift Lock System Connector End View - With Intelligent Key System (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
