Front Carrier, Input Clutch, Rear Internal Gear: Components

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

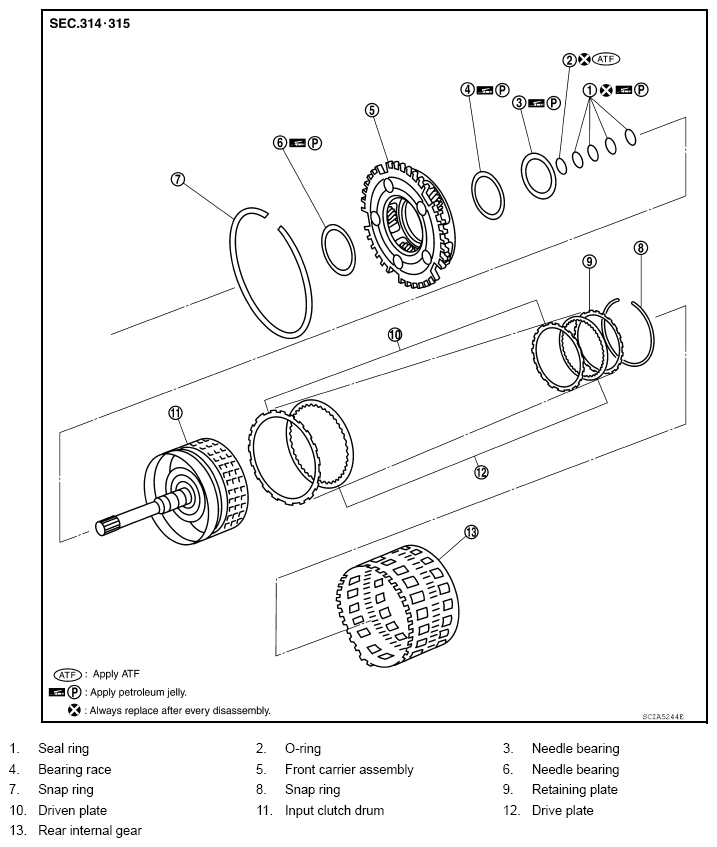

Fig 1: Identifying Front Carrier, Input Clutch And Rear Internal Gear Components
G08696304Courtesy of NISSAN NORTH AMERICA, INC.
