Unit Disassembly And Assembly: Overhaul: Component: Notes
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

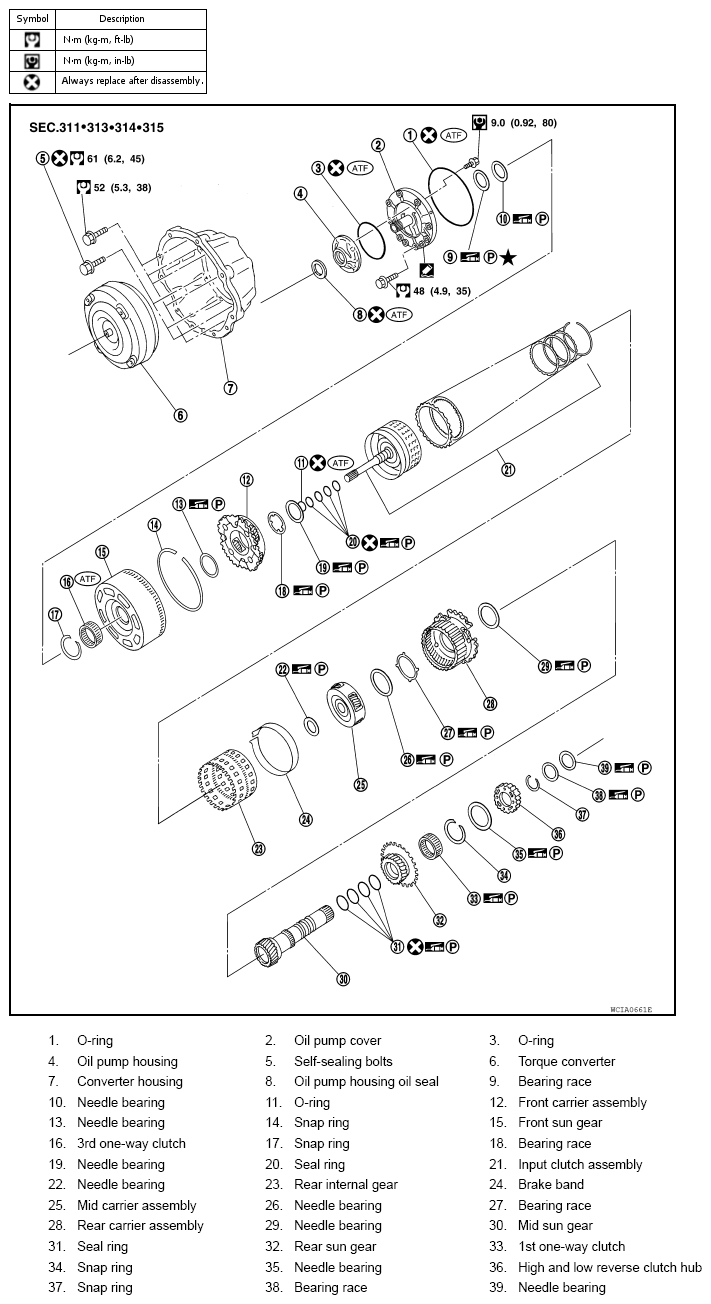

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

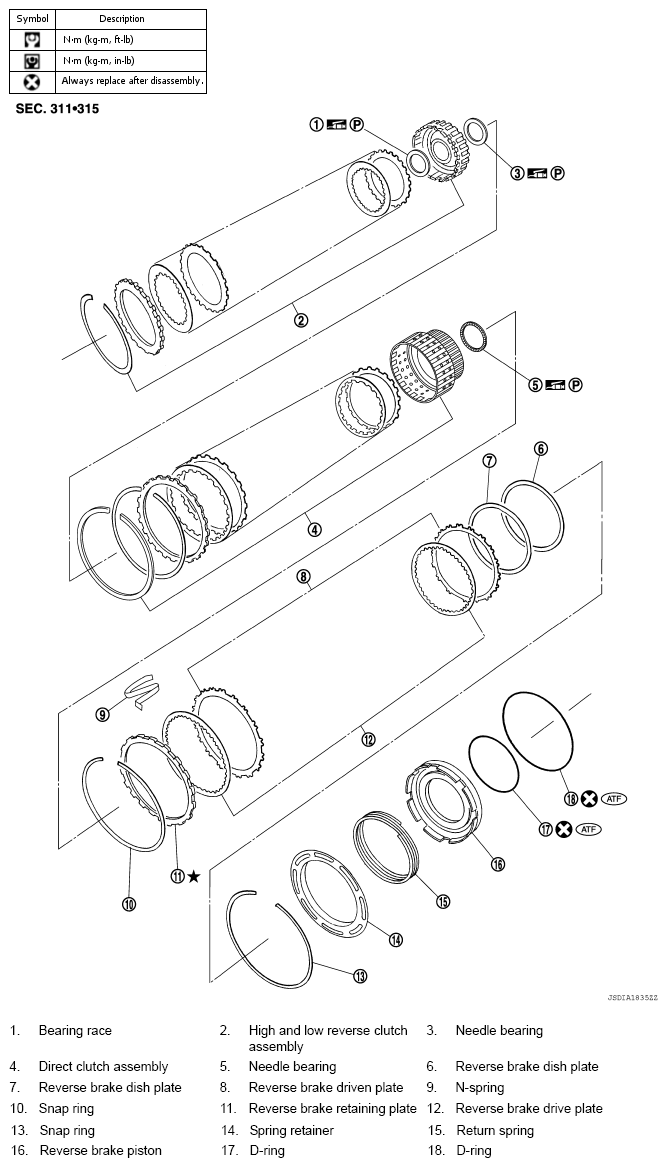

Fig 2: Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
