Judgment Self-diagnosis Code

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

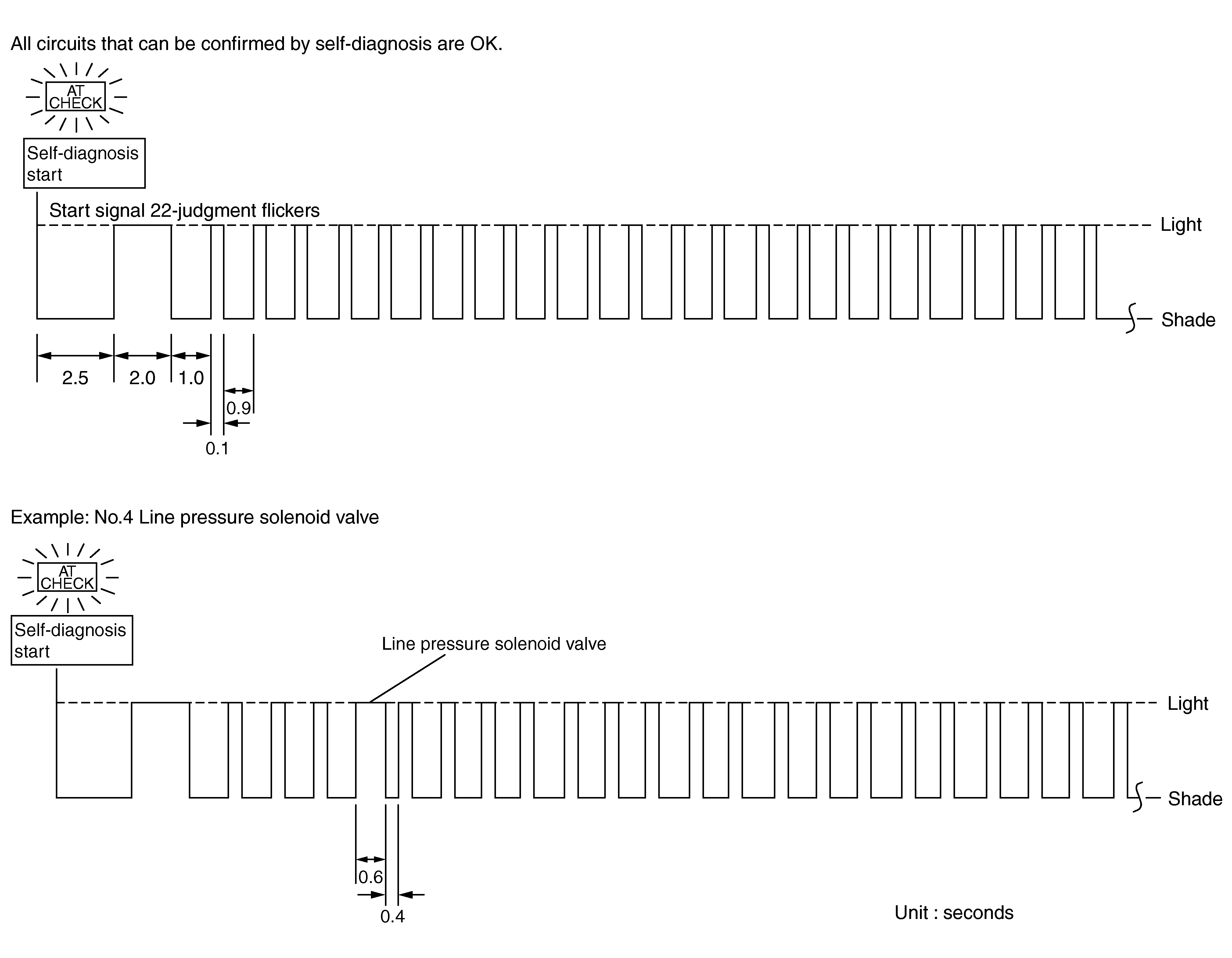

Fig 1: Judgment Self-Diagnosis Code Patterns

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Malfunctioning item
1	Output speed sensor P0720 OUTPUT SPEED SENSOR
2	Direct clutch solenoid P1762 DIRECT CLUTCH SOLENOID
3	Torque converter P0740 TORQUE CONVERTER , P0744 TORQUE CONVERTER
4	Pressure control solenoid A P0745 PRESSURE CONTROL SOLENOID A
5	Input clutch solenoid P1752 INPUT CLUTCH SOLENOID
6	Front brake solenoid P1757 FRONT BRAKE SOLENOID
7	Low coast brake solenoid P1772 LOW COAST BRAKE SOLENOID , P1774 LOW COAST BRAKE SOLENOID
8	High and low reverse clutch solenoid P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID
9	Transmission range switch A P0705 TRANSMISSION RANGE SWITCH A
10	Transmission fluid temperature sensor P1710 TRANSMISSION FLUID TEMPERATURE SENSOR
11	Input speed sensor A P0717 INPUT SPEED SENSOR A
12	Interlock P1730 INTERLOCK
13	1st engine braking P1731 1ST ENGINE BRAKING
14	Starter relay P0615 STARTER RELAY
15	TP sensor P1705 TP SENSOR
16	Engine speed P0725 ENGINE SPEED
17	CAN comm circuit U1000 CAN COMM CIRCUIT
18	1GR incorrect ratio P0731 1GR INCORRECT RATIO
19	2GR incorrect ratio P0732 2GR INCORRECT RATIO
20	3GR incorrect ratio P0733 3GR INCORRECT RATIO
21	4GR incorrect ratio P0734 4GR INCORRECT RATIO
22	5GR incorrect ratio P0735 5GR INCORRECT RATIO
