Clutch And Band Chart

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

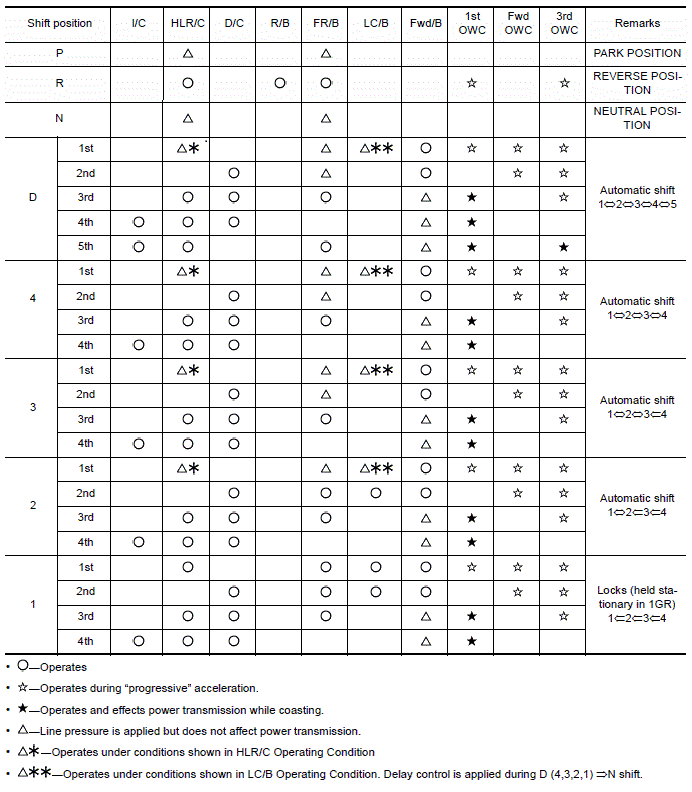

Fig 1: Identifying Clutch & Band Chart

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: HLR/C And LC/B Operating Condition Graph

Courtesy of NISSAN NORTH AMERICA, INC.
