Cross-Sectional View (4WD models)

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

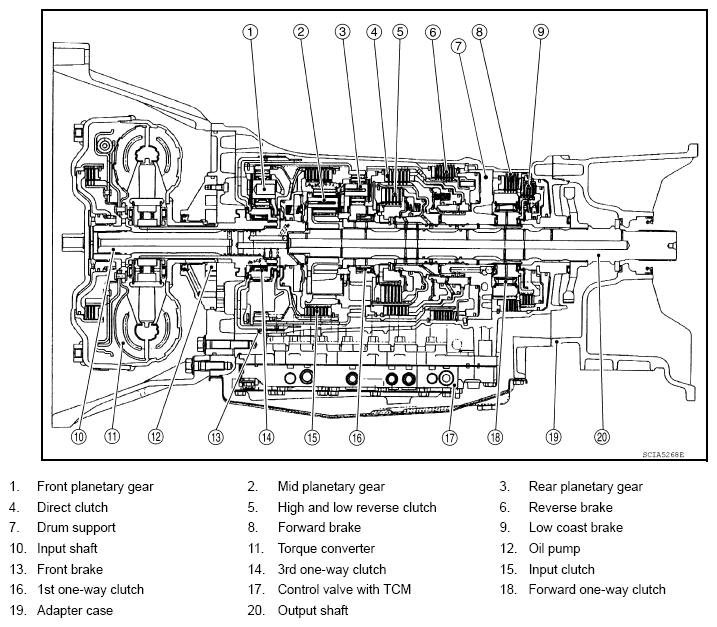

Fig 1: Cross-Sectional View Of A/T Control System (4WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.
