Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
Remove transfer from transmission (4WD models). Refer to "REMOVAL AND INSTALLATION (4WD) ".
Remove rear oil seal using suitable tool.
CAUTION: Do not scratch rear extension assembly (2WD models) or adapter case assembly (4WD models).

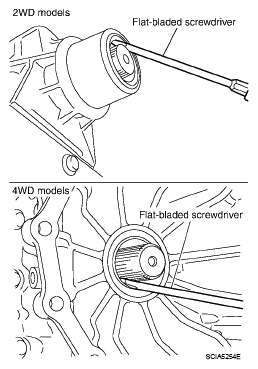

Fig 1: Removing Rear Oil Seal Using Suitable Tool
Courtesy of NISSAN NORTH AMERICA, INC.
