Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Install new rear oil seal until it is flush into the rear extension case (2WD models) using Tool or adapter case (4WD models) using suitable tool.
Tool number: ST33400001 (J-26082)

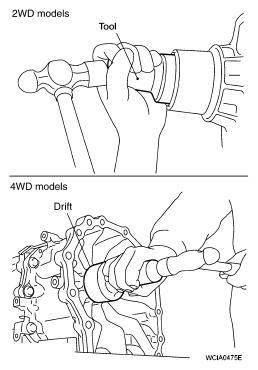

Fig 1: Installing Rear Oil Seal Into Rear Extension Case Using Tool Or Adapter Case
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Apply ATF to rear oil seal.
- Do not reuse rear oil seal.
Install transfer to transmission (4WD models). Refer to "REMOVAL AND INSTALLATION (4WD) ".
Install rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
Check the A/T fluid level and for fluid leakage. Refer to "CHECKING THE A/T FLUID (ATF) ".
