Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/T shift selector assembly. Refer to "A/T SHIFT SELECTOR REMOVAL AND INSTALLATION ".
  2. Remove the front heater and cooling unit assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the control cable retainer bolts.
  4. Remove the control cable nut (1) and disconnect the control cable from the manual lever (2).
  5. Remove the control cable from the vehicle.

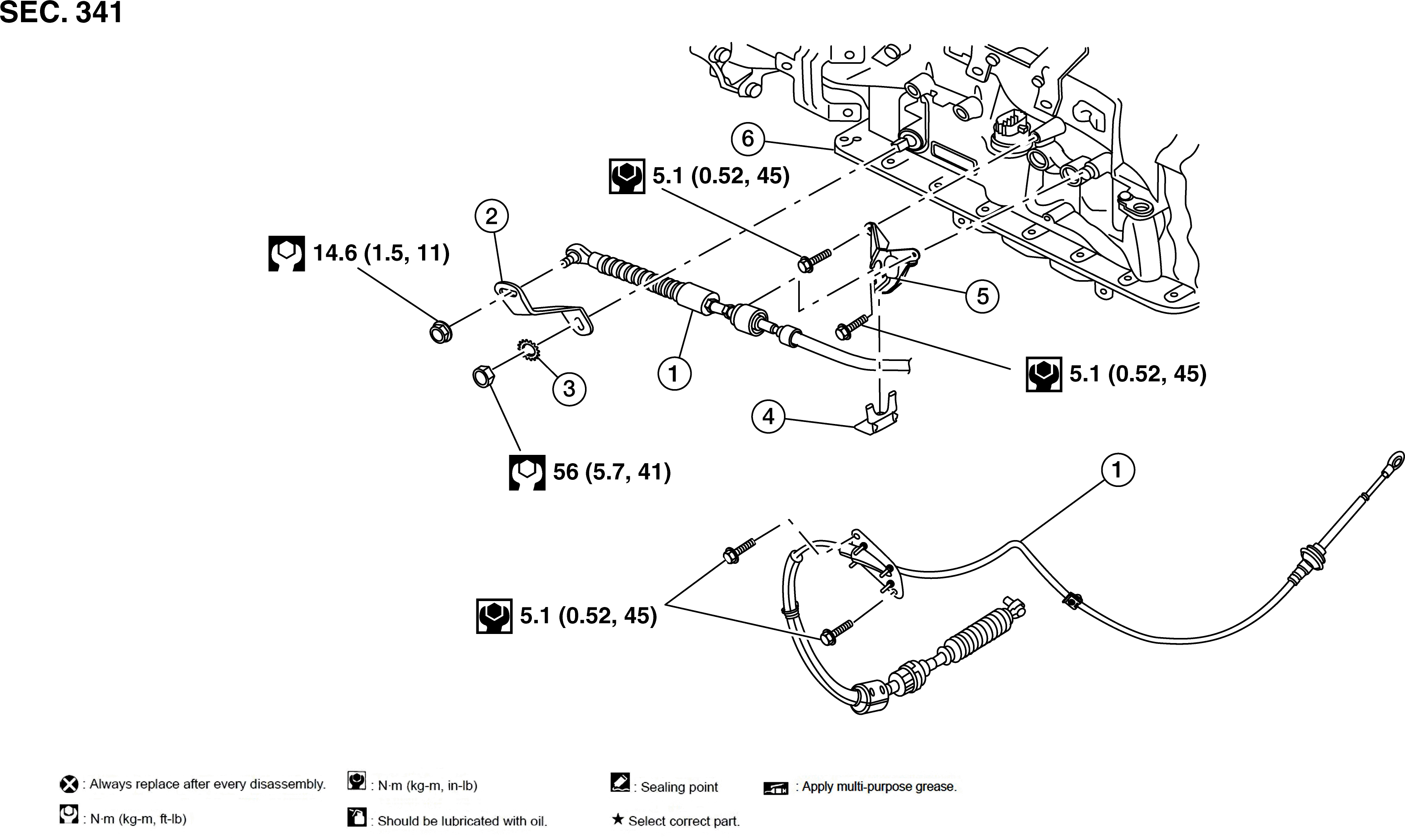

    Fig 1: Identifying Control Cable Nut And Manual Lever
    G08696141Courtesy of NISSAN NORTH AMERICA, INC.
