Overall Sequence

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Before performing a generator test, make sure that the battery is fully charged. A 30-volt voltmeter and suitable test probes are necessary for the test.

Before starting, inspect the fusible link.
Use fully charged battery.

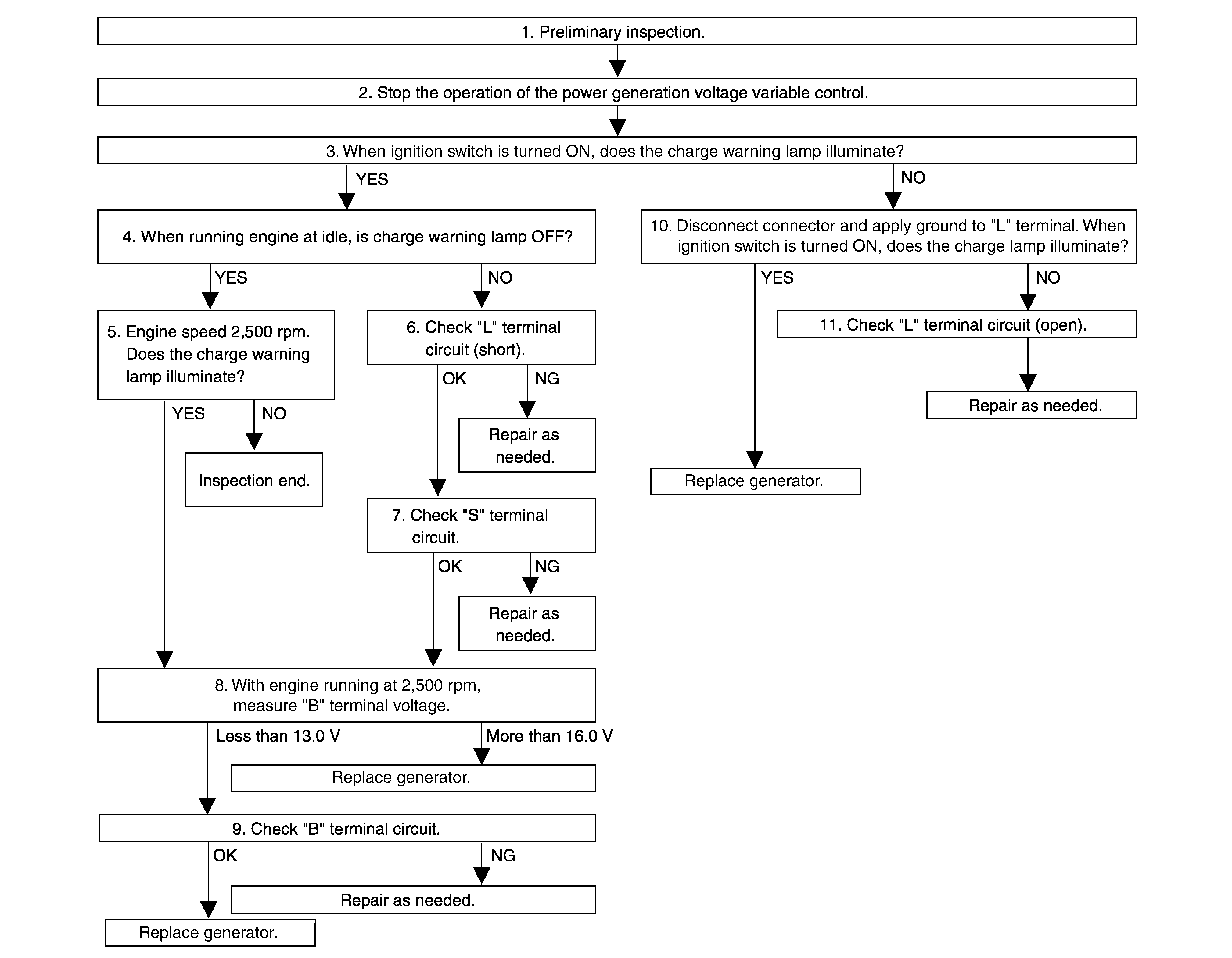

Fig 1: Diagnosis And Repair Workflow Chart (Without EXP-800 NI Or GR8-1200 NI)
Courtesy of NISSAN NORTH AMERICA, INC.
