Overall Sequence

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

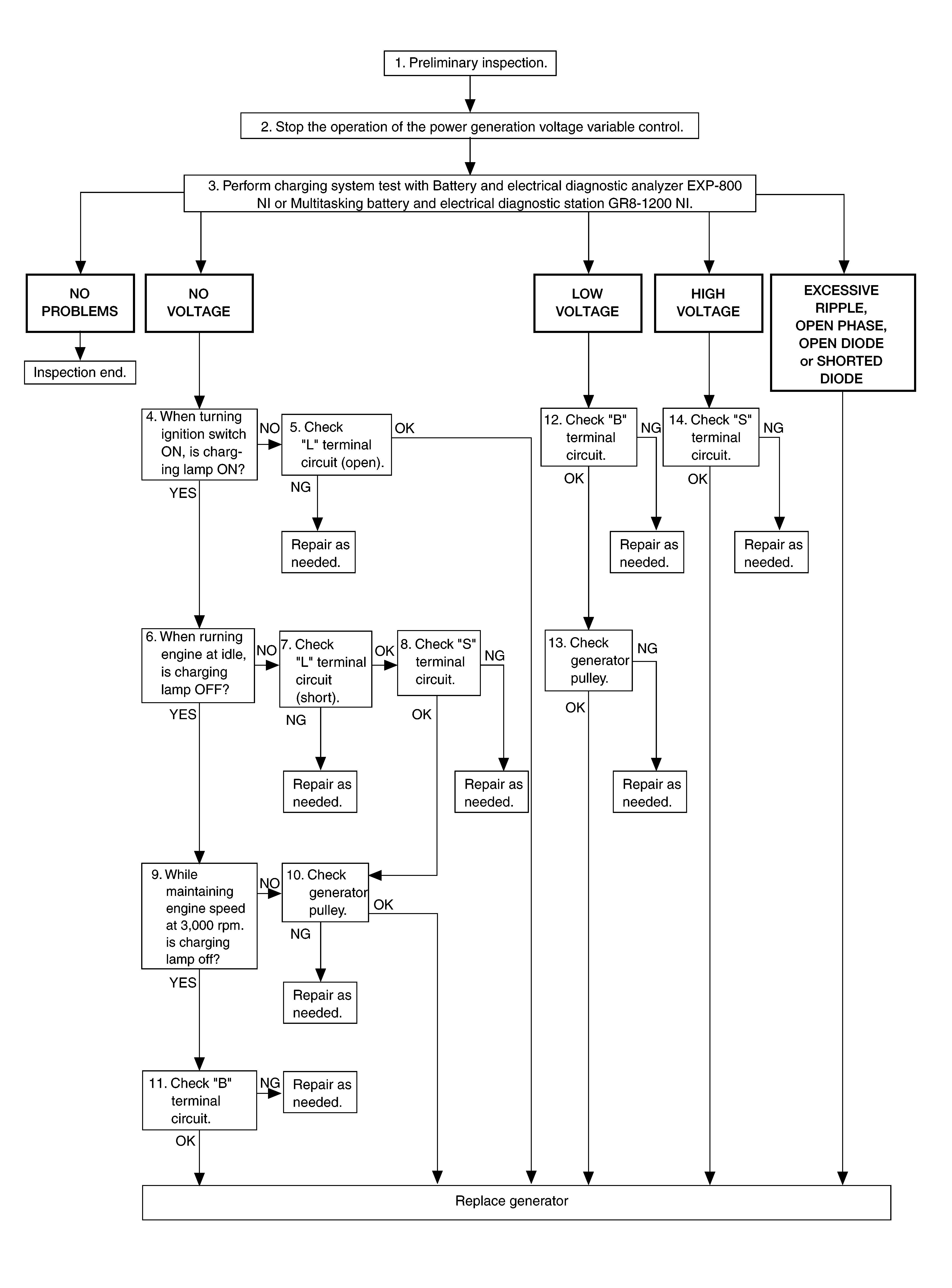

Fig 1: Diagnosis And Repair Workflow Chart (With EXP-800 NI Or GR8-1200 NI)

Courtesy of NISSAN NORTH AMERICA, INC.
