Removal and Installation: Notes

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

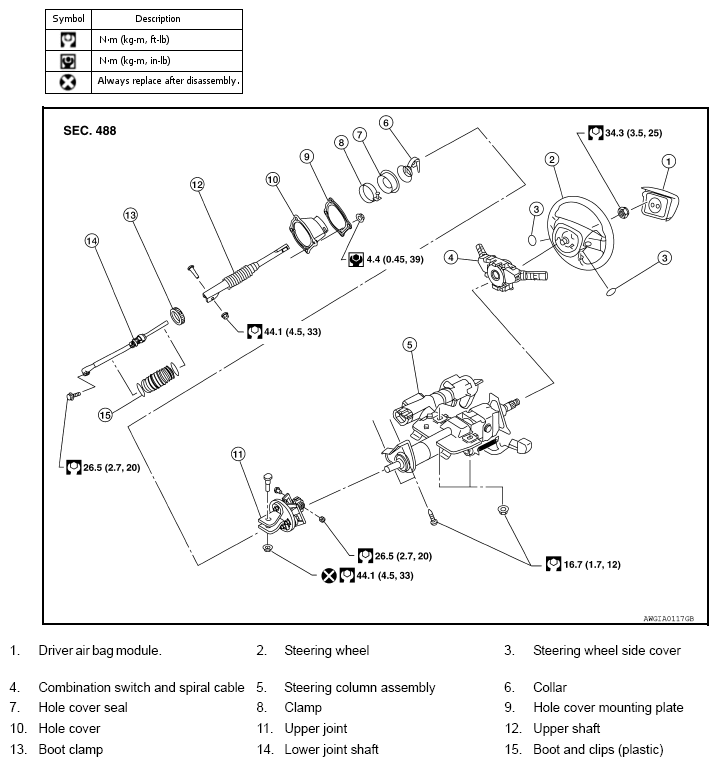

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
Any time the ignition switch has been disconnected, removed and installed, the keys must be re-registered in the BCM. Refer to the CONSULT Immobilizer mode and follow the on-screen instructions.
