Removal and Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustration for hydraulic line removal.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

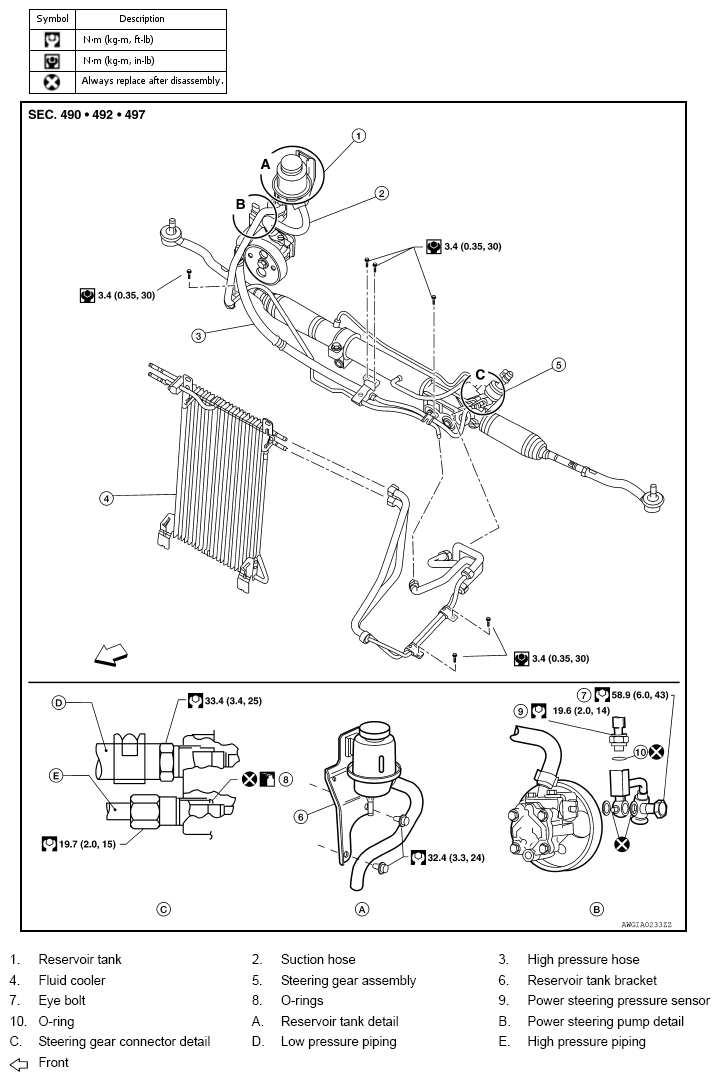

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Installation is in the reverse order of removal.

Confirm mating marks are aligned with hose and clamp, then correct if needed.

Fig 2: Identifying Hose And Clamp Marking And Notch
Courtesy of NISSAN NORTH AMERICA, INC.
To install eye joint, align projection (2) of eye joint with notch of power steering pump, and attach eye joint to power steering pump properly. Tighten eye bolt by hand fully, then torque to specification.
1. (1) Pressure sensor
2. (3) Copper sealing washers
3. (4) O-ring
  CAUTION: Do not reuse O-rings or copper sealing washers.

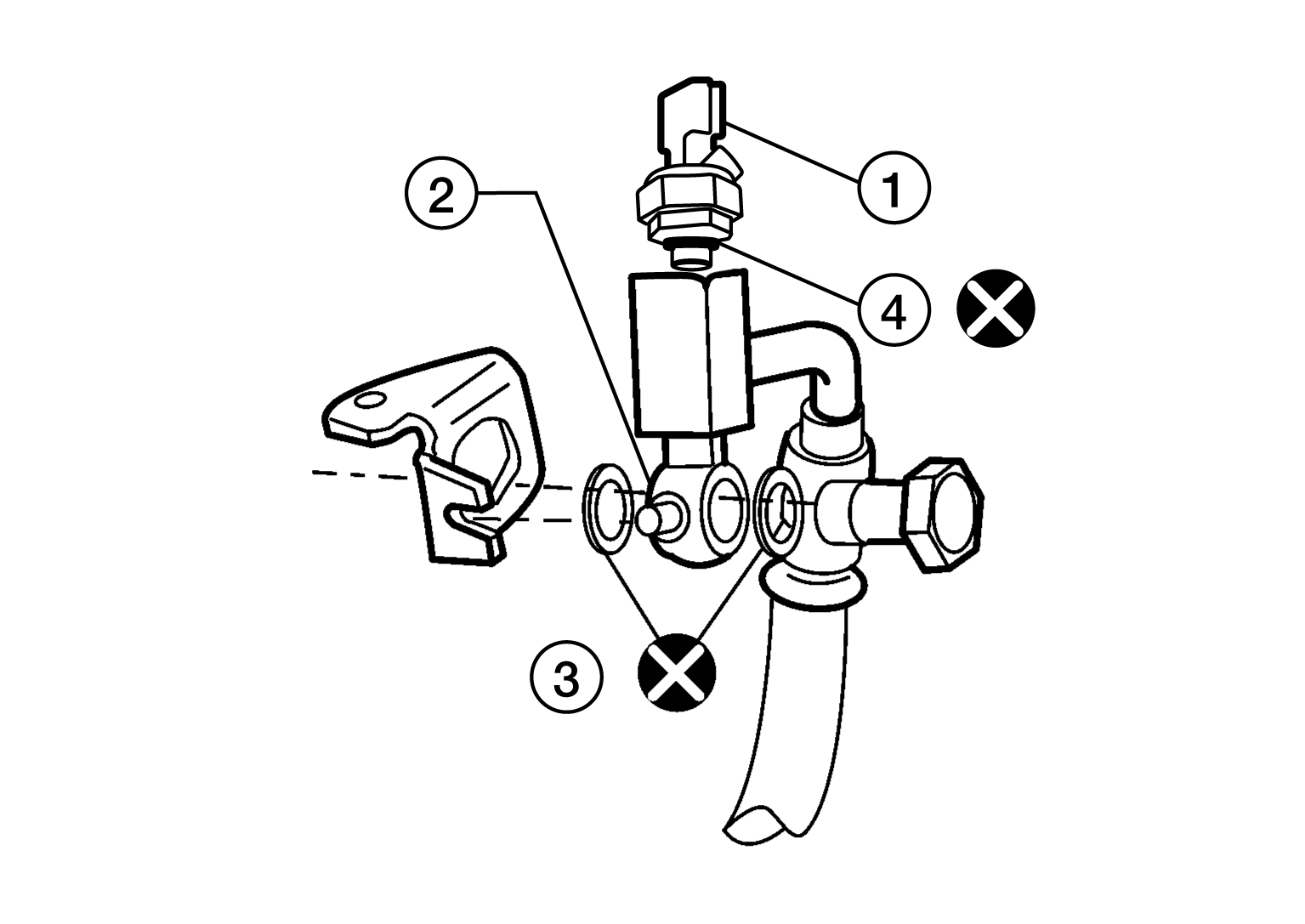

  Fig 3: Identifying Pressure Sensor, Copper Sealing Washers, O-Ring And Projection
