Removal and Installation: Notes

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

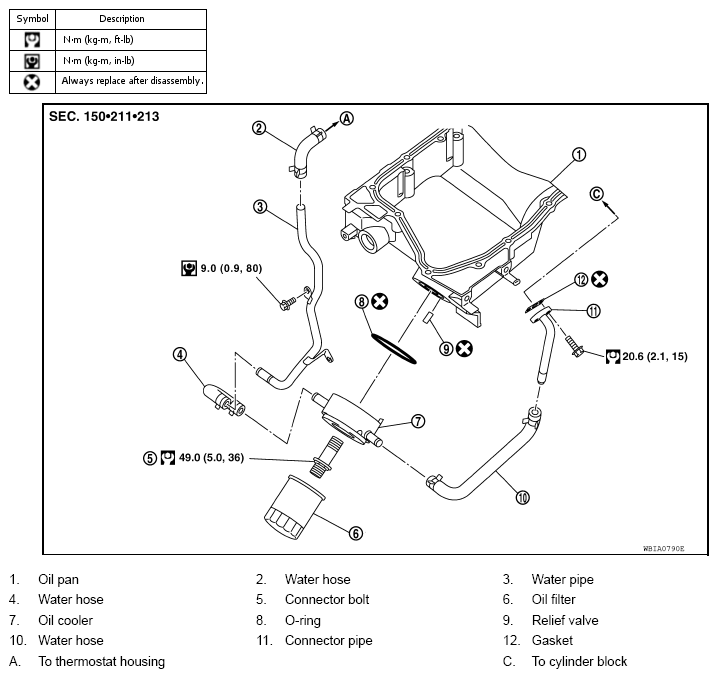

Fig 1: Exploded View Of Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Be careful not to burn yourself, as the engine oil and engine coolant may be hot.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
