Section 879 (Engine Control System (Introduction))
>>
System Description
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing
WARNING:
This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

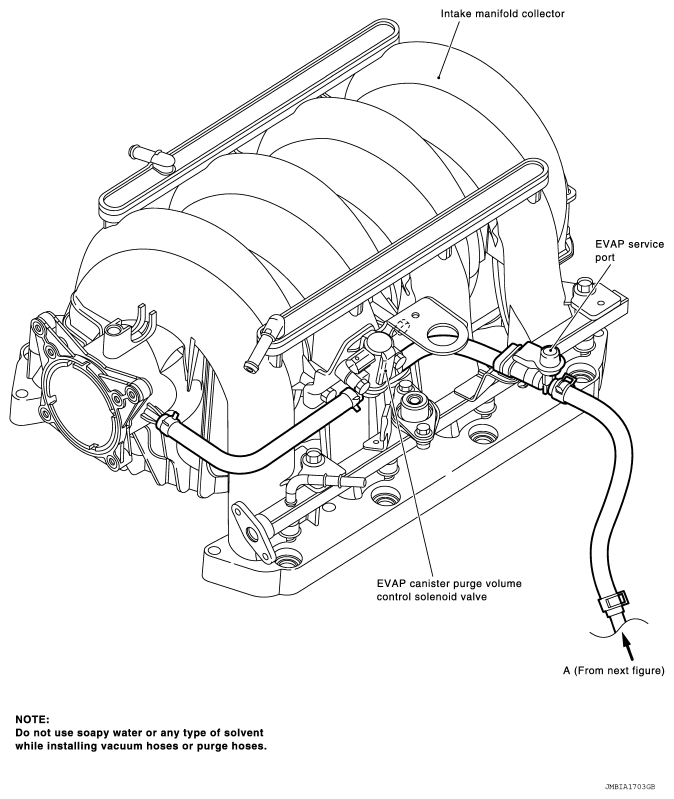

Fig 1: Evaporative Emission Line Drawing (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

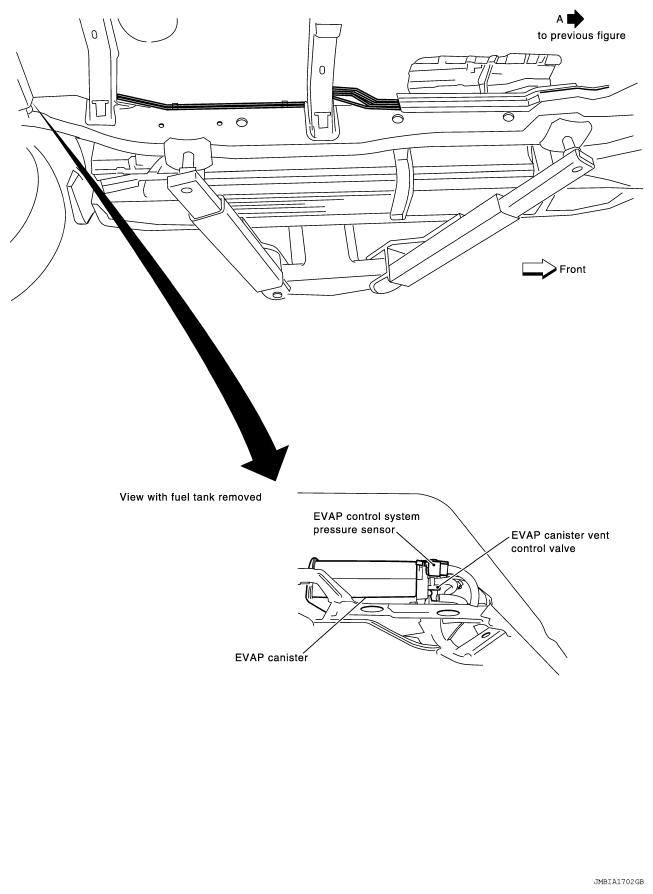

Fig 2: Evaporative Emission Line Drawing (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
