DRIVE BELTS: Checking Drive Belts: Notes

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

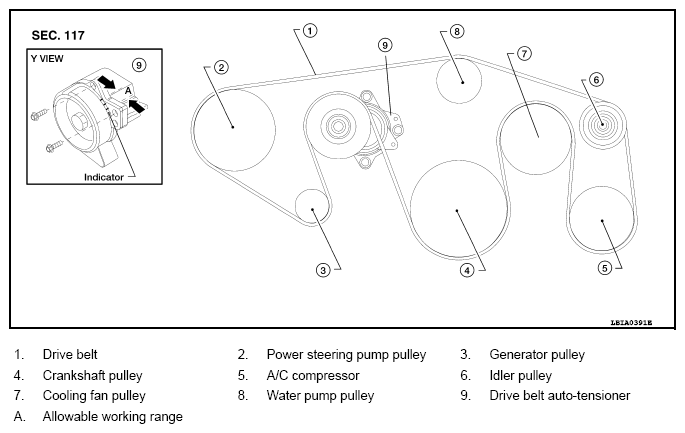

Fig 1: Identifying Drive Belts And Pulleys
G08693675Courtesy of NISSAN NORTH AMERICA, INC.
WARNING: Be sure to perform when the engine is stopped.
  1. Remove air duct and resonator assembly when inspecting drive belt.
  2. Make sure that indicator (single line notch) of each auto-tensioner is within the allowable working range (between three line notches).
    NOTE:
    • Check the drive belt auto-tensioner indication when the engine is cold.
    • The indicator notch is located on the moving side of the drive belt auto-tensioner.
  3. Visually check entire drive belt for wear, damage or cracks.
  4. If the indicator is out of allowable working range or drive belt is damaged, replace the drive belt. Refer to DRIVE BELTS .
