LOCKS AND HINGES: Lubricating Locks, Hinges and Hood Latches
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

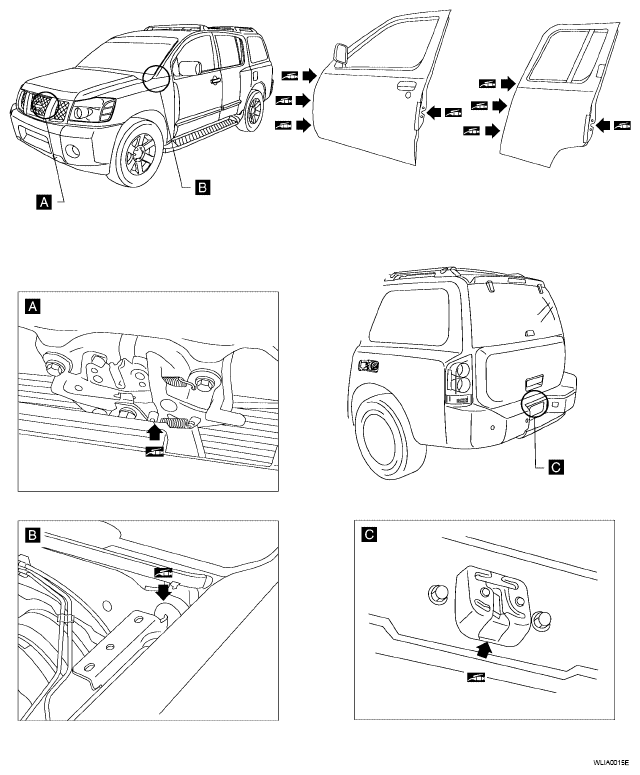

Fig 1: Identifying Locks, Hinges And Hood Latches Lubricating Area
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Lubricate the locations shown below with a suitable multi-purpose grease.
