Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Tighten engine mounting bracket bolts in numerical order as shown below.
Engine mounting bracket bolts: 100 N.m (10.0 kg-m, 74 ft-lb)

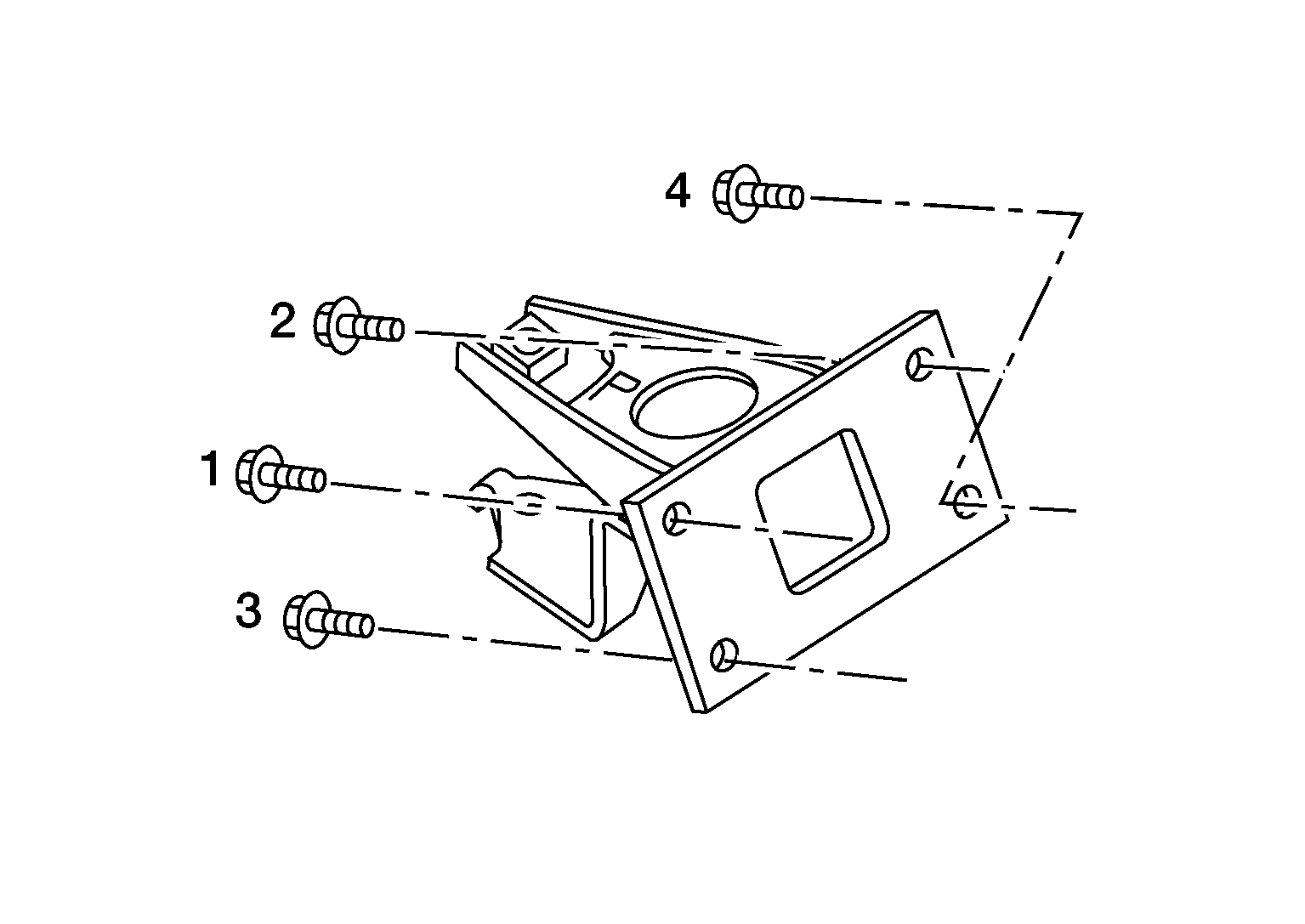

Fig 1: Identifying Tightening Sequence Of Engine Bracket Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

When replacing an engine or transmission you must make sure the dowels are installed correctly during re-assembly.
Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drivetrain components.
