Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the joint part of the cylinder head and camshaft bracket following the steps below.
NOTE: Illustration shows an example of (LH) side (zoomed in shows No. 1 camshaft bracket).
1. Refer to illustration (a) to apply liquid gasket to the joint part of No. 1 camshaft bracket and cylinder head.
2. Refer to illustration (b) to apply liquid gasket 90° to illustration (a).
  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

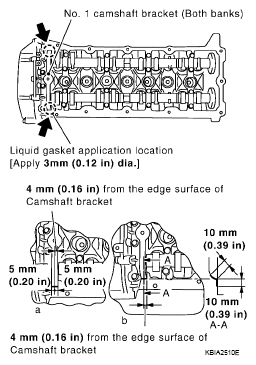

  Fig 1: Identifying Liquid Gasket Applying Area On Joint Part Of Cylinder Head And Camshaft Bracket
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the rocker cover (A) or (B).
- Make sure the new rocker cover gasket is installed in the groove of the rocker cover (A) or (B).
- Tighten the bolts in two steps in the numerical order shown below.

  Fig 2: Identifying Tightening Sequence Of Rocker Cover Mounting Bolts
  Courtesy of NISSAN NORTH AMERICA, INC.

  1st step: 2.0 N.m (0.2 kg-m, 18 in-lb)

  2nd step: 8.3 N.m (0.85 kg-m, 73 in-lb)

  CAUTION: Do not hold the rocker cover (RH) (B) by the oil filler neck.
Install the PCV hoses.
NOTE:
- Remove foreign materials from inside the hose using compressed air.
- The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].
Installation of the remaining components is in the reverse order of removal.
