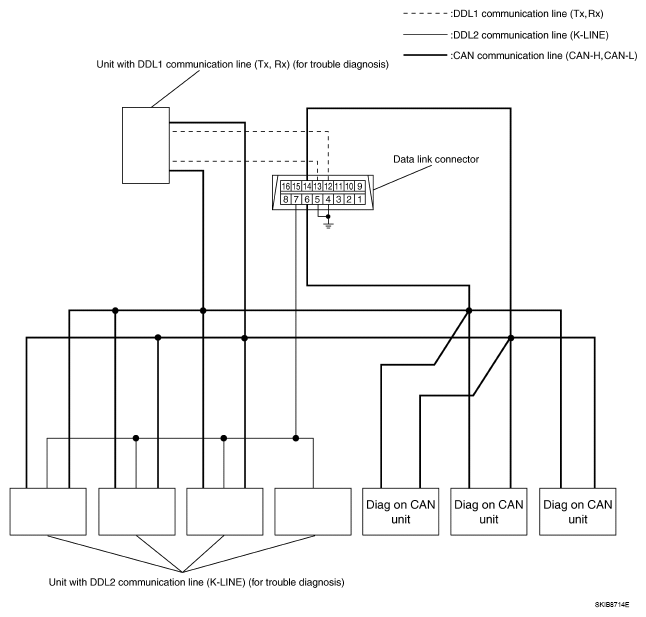

System Diagram
WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| Name |
Harness |
Description |
| DDL1 |
Tx
Rx |
It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
| DDL2 |
K-LINE |
It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
| Diag on CAN |
CAN-H
CAN-L |
It is used for trouble diagnosis and control. |
