Create Diagnosis Sheet

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be sure to use the diagnosis sheet for the correct CAN system type.

Print Diagnosis Sheet

Print the diagnosis sheet for the applicable CAN system type.

Check Collected Data

Check that all ECUs are received, referring to "system" displayed in "ALL DTC."

NOTE: For abbreviations, refer to "ABBREVIATION LIST ".

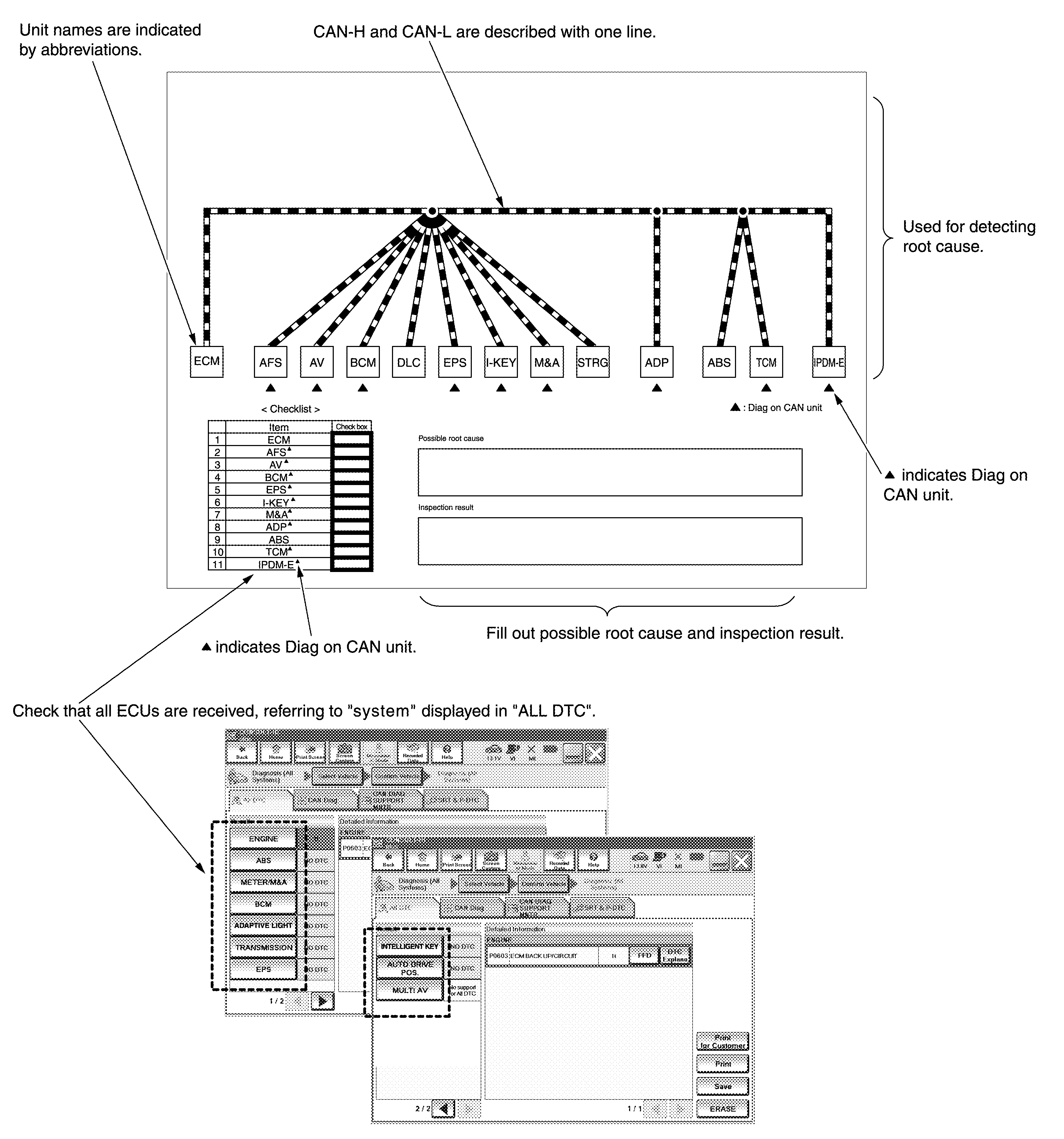

Fig 1: Example Of Create Diagnosis Sheet

Courtesy of NISSAN NORTH AMERICA, INC.
