Collect Data

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Collect CONSULT Data

Print out or save the following CONSULT data.

SELF-DIAG RESULTS
CAN DIAG SUPPORT MNTR

NOTE: Some items may not be needed depending on CAN system type of vehicle.

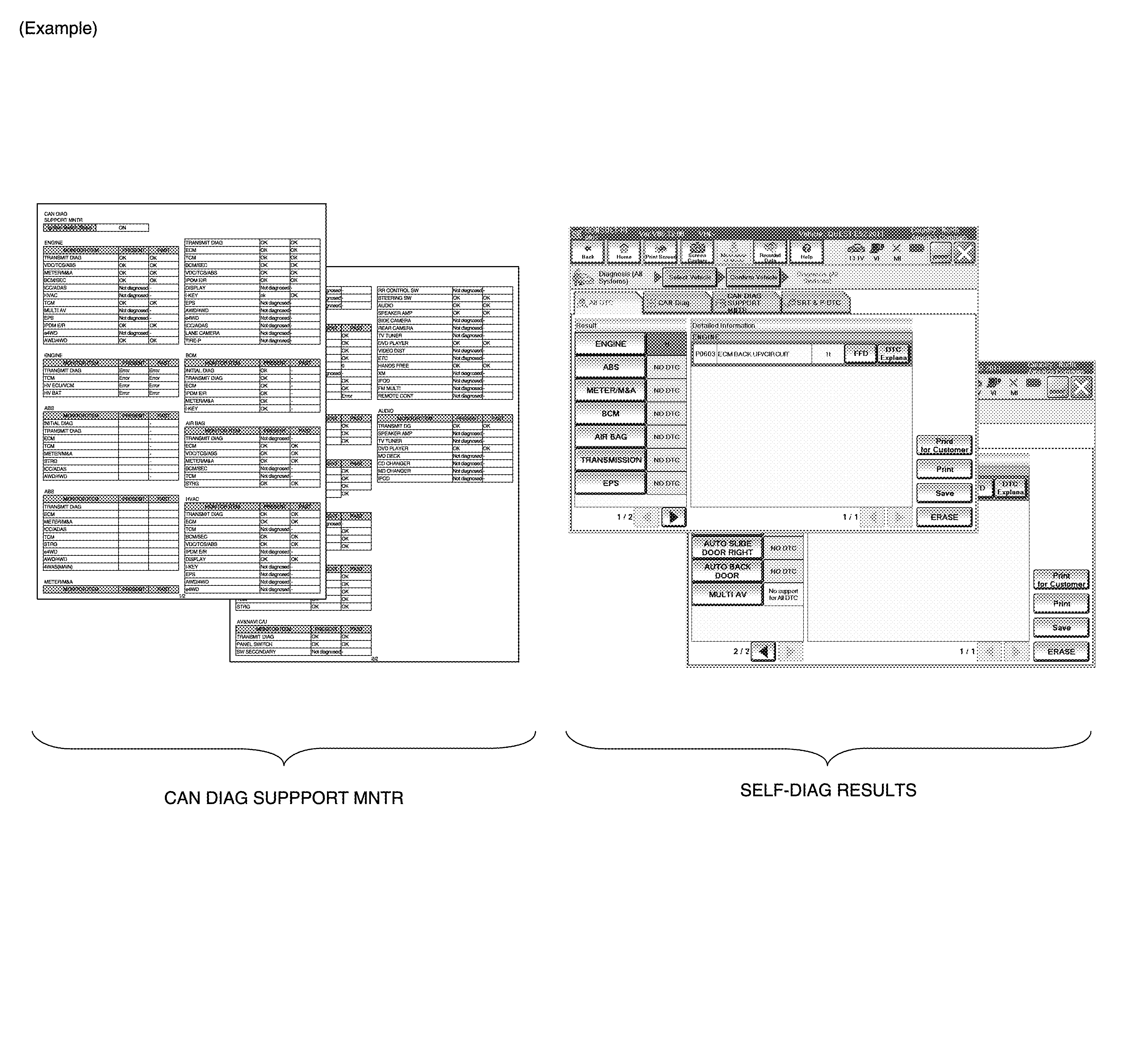

Fig 1: Example Of CAN DIAG Support MNTR

Courtesy of NISSAN NORTH AMERICA, INC.

Create On-board Diagnosis Copy Sheet

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle monitor, etc. Copy them on the on-board diagnosis copy sheet.

NOTE: For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT is not available.)

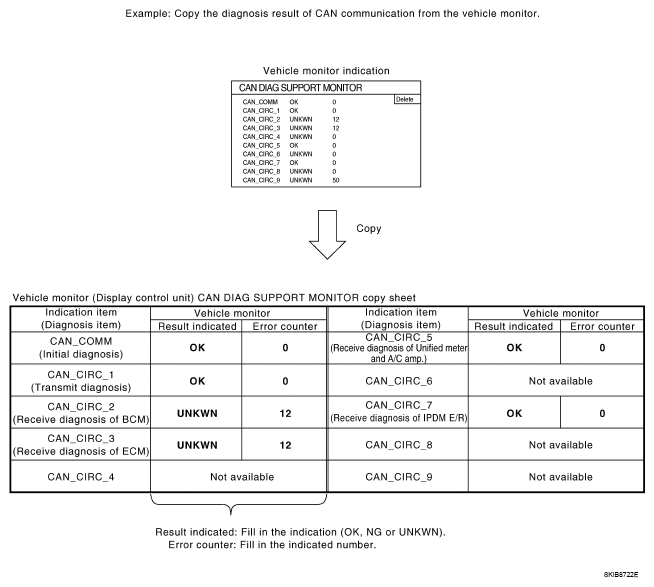

Fig 2: Example Of CAN Communication Diagnosis Result Copy

Courtesy of NISSAN NORTH AMERICA, INC.
