Refrigeration System: Component

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

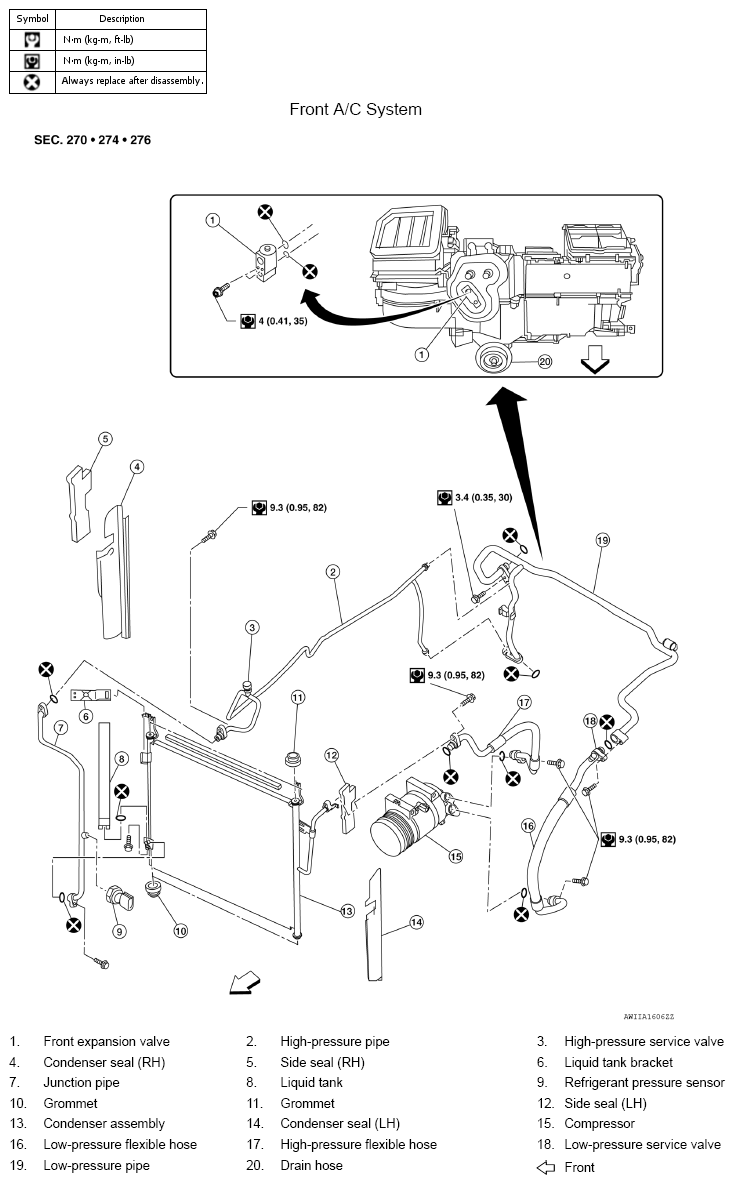

Fig 1: Exploded View Of Refrigeration System Components With Torque Specifications (Front A/C System)

Courtesy of NISSAN NORTH AMERICA, INC.

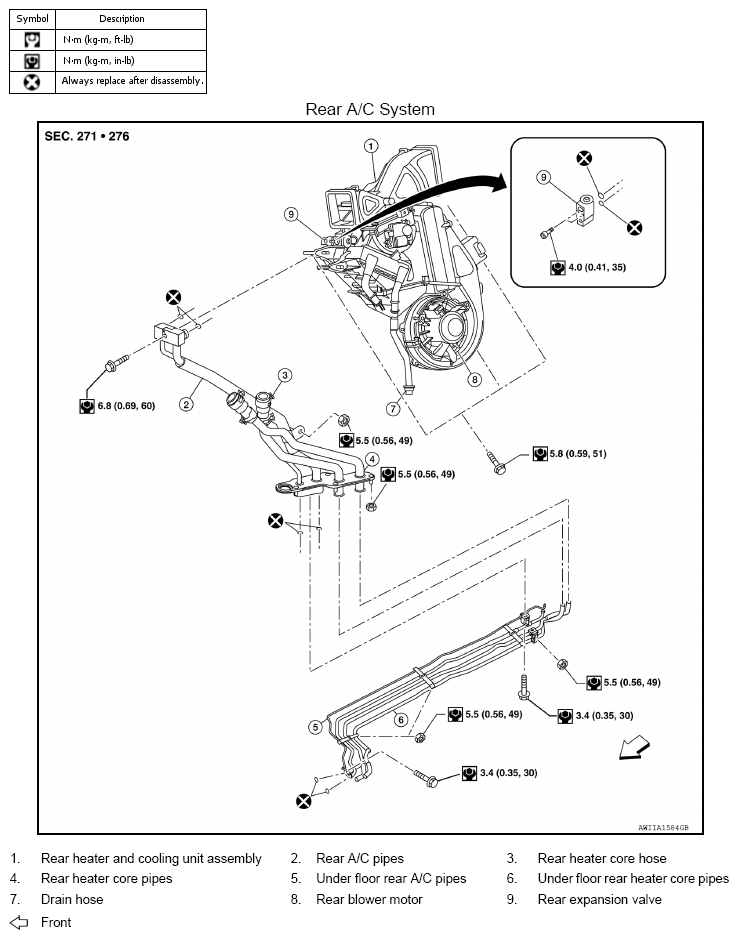

Fig 2: Exploded View Of Refrigeration System Components With Torque Specifications (Rear A/C System)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Refer to "PRECAUTION FOR REFRIGERANT CONNECTION ".
