Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Remove the condenser. Refer to "REMOVAL AND INSTALLATION ".
Clean liquid tank and its surrounding area and remove dirt and rust from liquid tank.
CAUTION: Be sure to clean carefully.
Remove bracket bolt (A) and liquid tank bolt (B) from liquid tank (1).

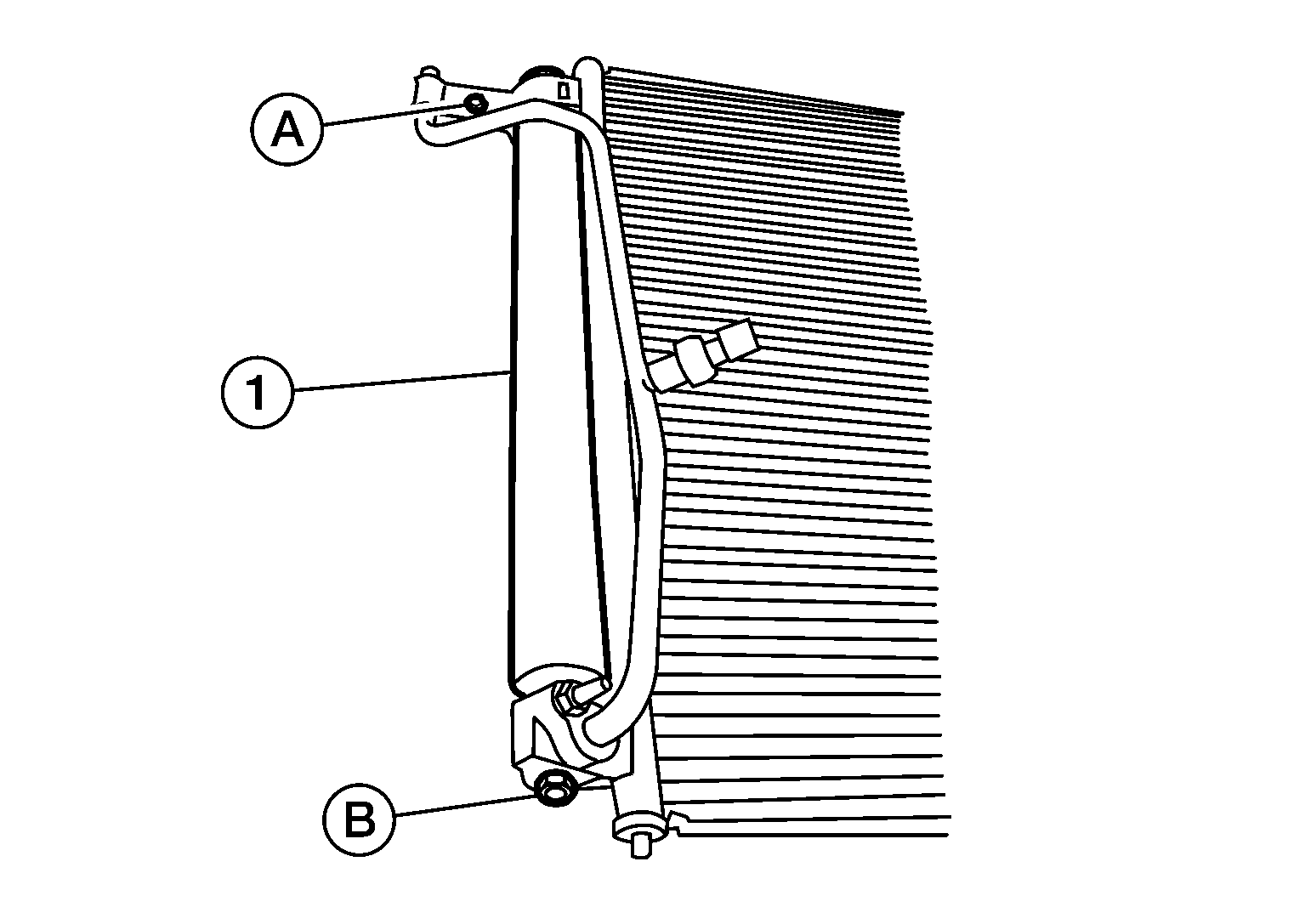

Fig 1: Identifying Liquid Tank, Bracket Bolt And Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Remove liquid tank bracket (1) from protruding part of condenser (2).
Slide liquid tank (3) upward away from condenser block and remove.

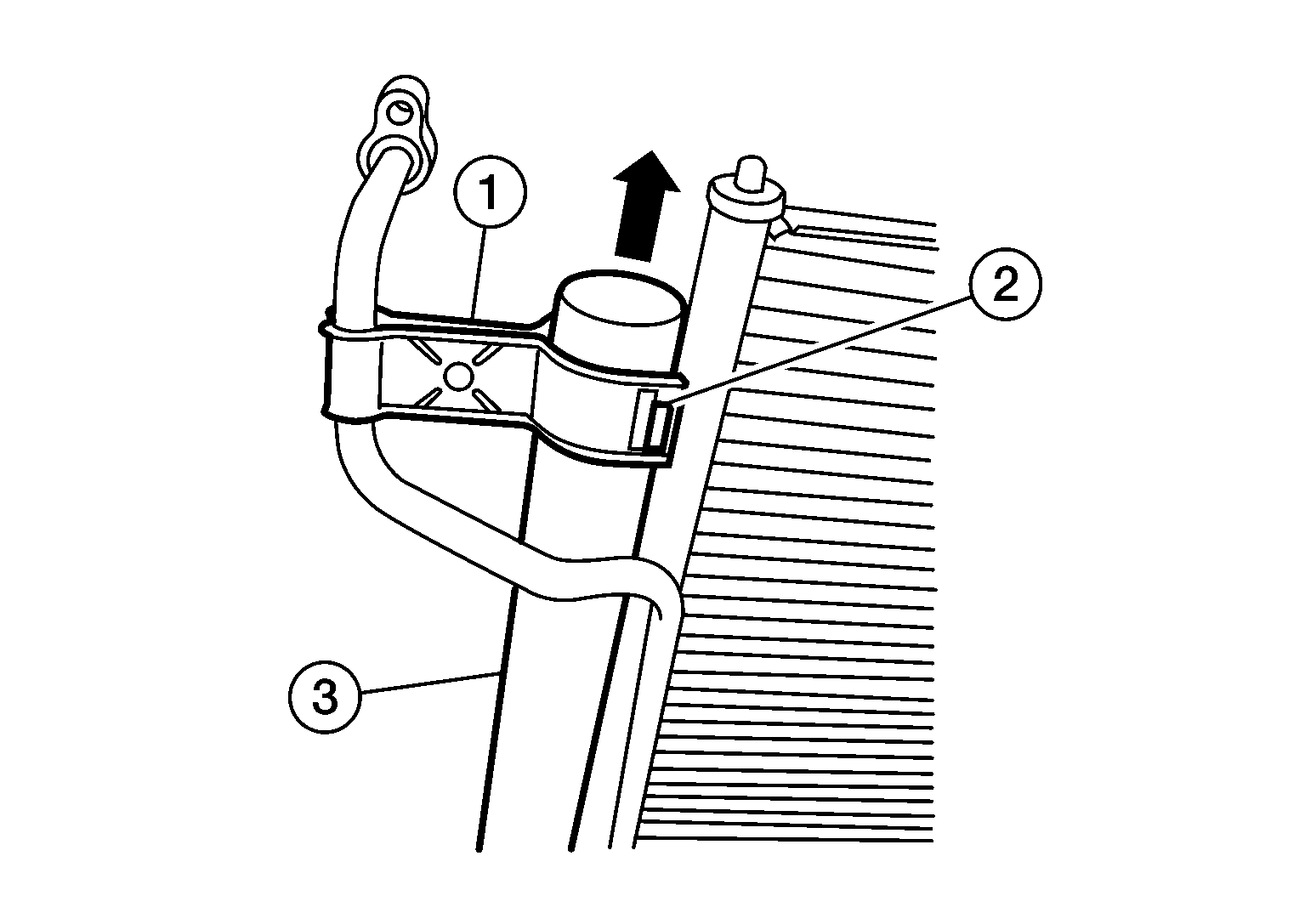

Fig 2: Removing Liquid Tank From Condenser Block
Courtesy of NISSAN NORTH AMERICA, INC.
