Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE: Be careful to align the threaded liquid tank bolt hole (A) with condenser block (B).

CAUTION:

Make sure liquid tank bolt is securely installed at condenser block (B).
Always replace O-rings for A/C piping with new ones, and apply compressor oil when installing.
When recharging refrigerant, check for leaks. Refer to "CHECKING OF REFRIGERANT LEAKS ".

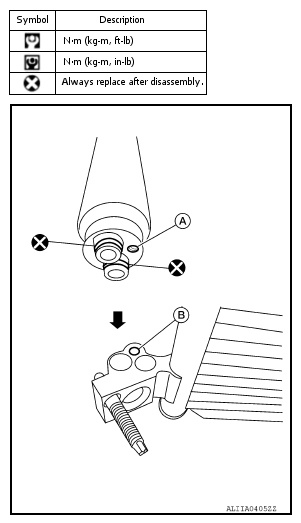

Fig 1: Identifying Condenser Block And Liquid Tank Bolt Hole

Courtesy of NISSAN NORTH AMERICA, INC.
