Removal and Installation - Front Expansion Valve: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
Remove the nuts (A) from the low-pressure pipe (1).

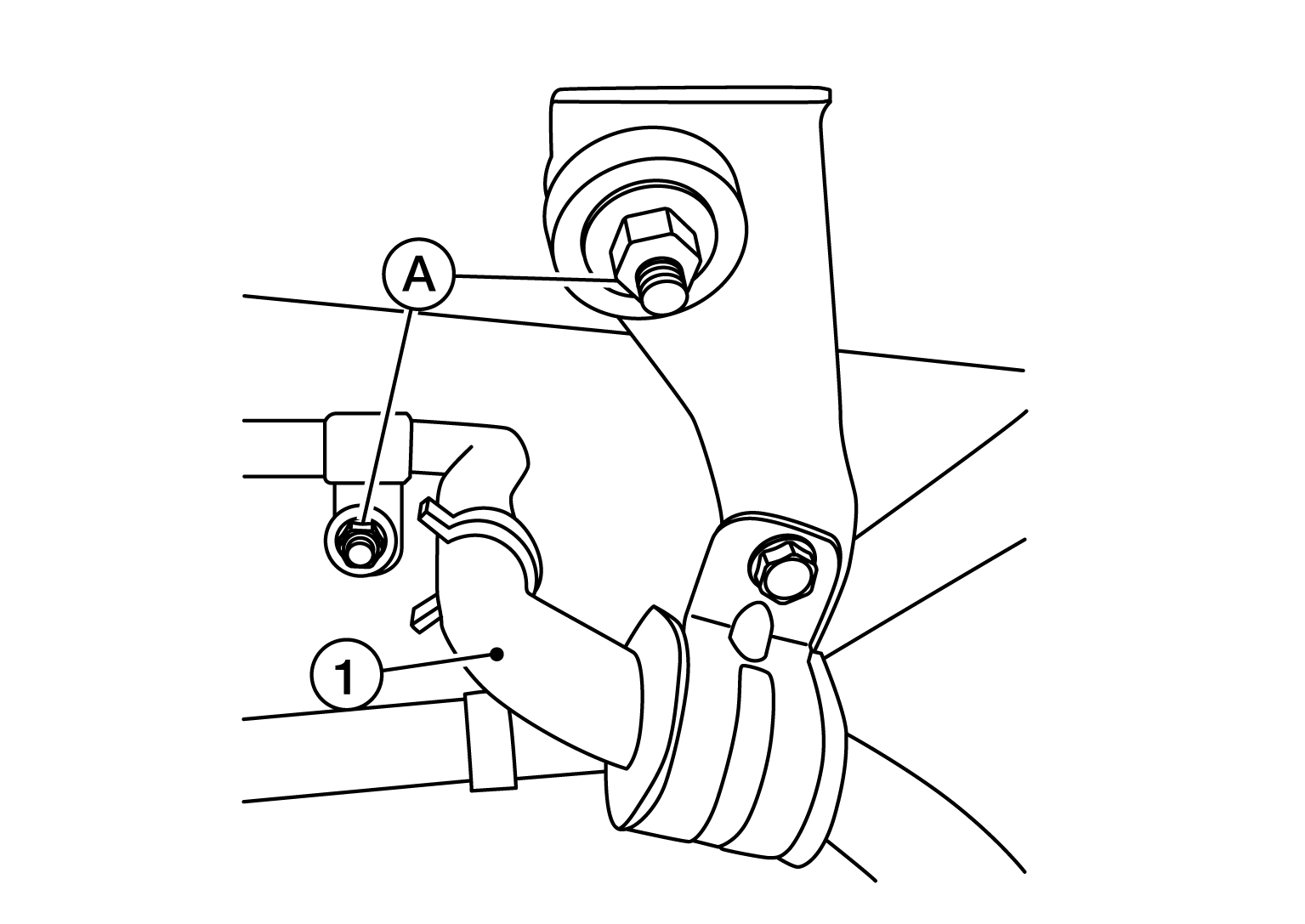

Fig 1: Identifying Low-Pressure Pipe And Nuts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the high-pressure pipe and low-pressure pipe bolt (A) from the front expansion valve (1).
CAUTION: Cap or wrap the A/C refrigerant pipe ends and the evaporator pipe ends with a suitable material such as vinyl tape to avoid the entry of air and contaminants.

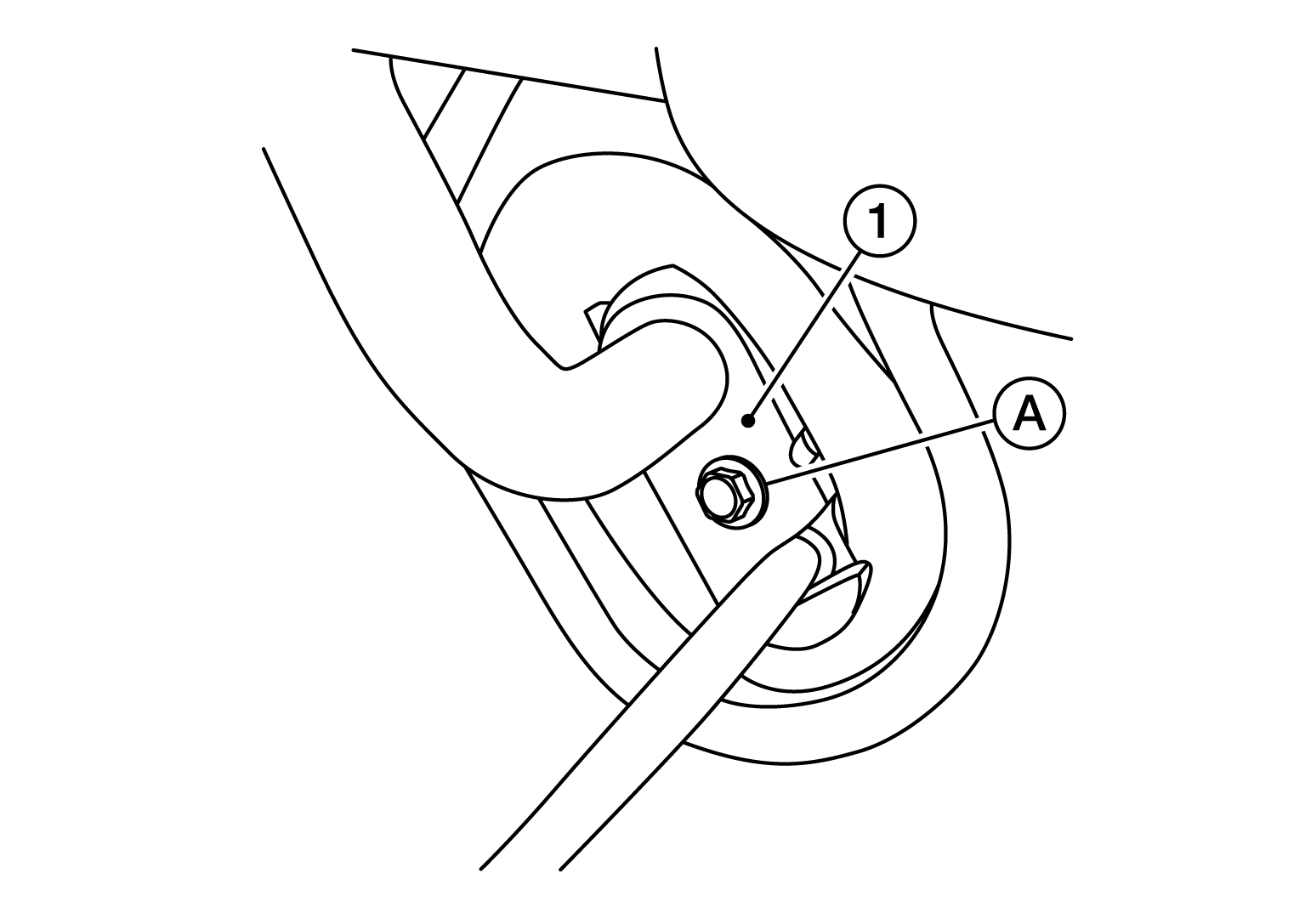

Fig 2: Removing High-Pressure Pipe And Low-Pressure Pipe Bolt From Front Expansion Valve
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the front expansion valve bolts (A), then remove the front expansion valve (1).

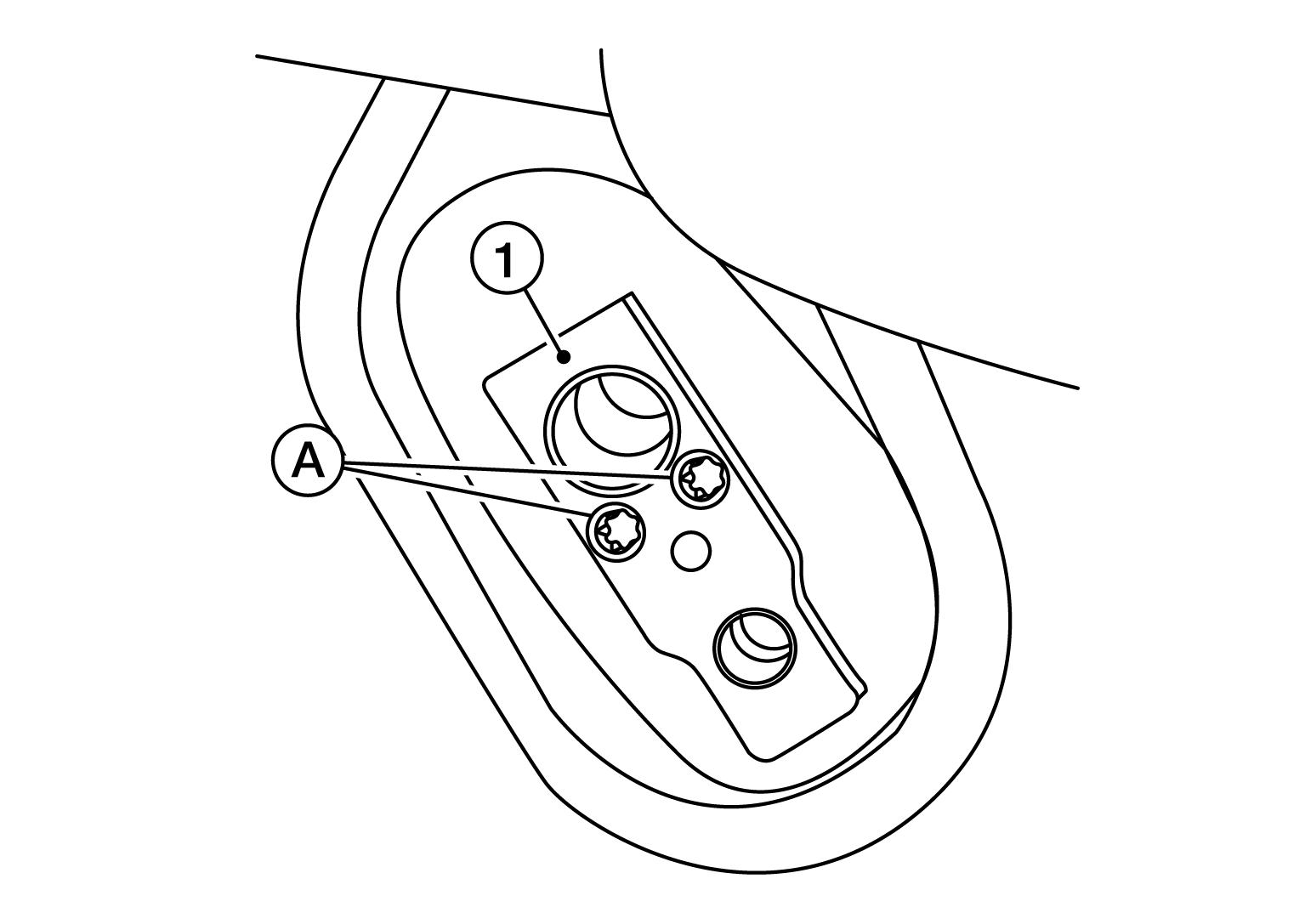

Fig 3: Identifying Front Expansion Valve And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
