Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The ambient sensor (1) is located behind the front bumper fascia, in front of the condenser.
Access to the ambient sensor (1) is through the opening in the front bumper fascia.

Disconnect the harness connector from the ambient sensor (1).
Release the ambient sensor clip and remove the ambient sensor (1).

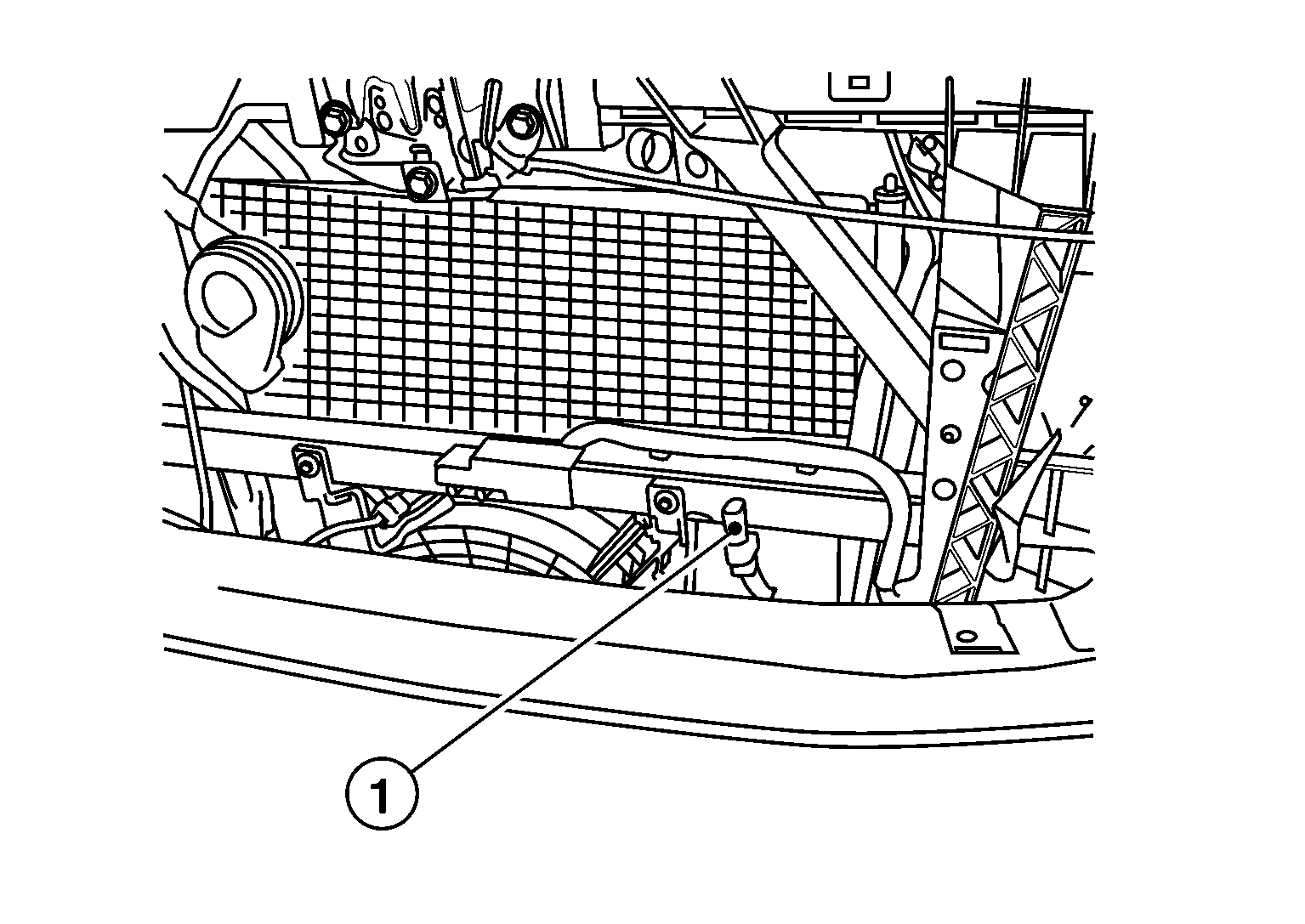

Fig 1: Identifying Ambient Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
