Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal (1) and positive battery terminal (2).
    CAUTION: Remove negative battery terminal first.

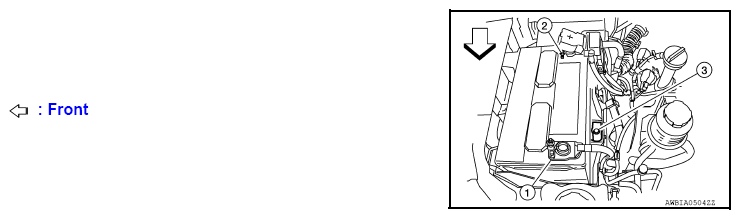

    Fig 1: Identifying Battery Clamp Bolt, Negative And Positive Battery Terminal
    G08693414Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the battery cover.
  3. Remove the battery clamp bolt (3) and battery clamp.
  4. Remove the battery.
